- Resolution: 1280 x 1024
- Sensor Size: 1/3” progressive scan CMOS
- Day/Night: Yes (electronic)
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: 1.5 Lux (1/60 sec), 0.1 Lux (1/5 sec), (F/2.0, AGC‐ON, slow shutter‐Off.)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: F/2.0
- Focal Length: 1.25 mm
- Zoom: Fixed
- Iris: Fixed
- Focus: Fixed
- Field of View:
- Compression Styles: H.264, MPEG4, MJPEG
- Frame Rate: 15 fps
- Image Settings: Brightness, Contrast, Sharpness, Saturation, Gamma, White Balance, Flicker‐less, Backlight Compensation, Image Orientation, Shutter Speed, Day / Night
- Privacy Mask: Yes
- Built-in Microphone: Yes
- Audio Capabilities: Two-Way Audio
- Alarm/Event Management:
- ONVIF:
- Security:
- Users: N/A
- On-board Storage: Yes
- Indoor/Outdoor:
- Housing/Enclosure Rating:
- Dimensions: 164 x 47.66 mm / 6.46 x 1.88 in (In‐Ceiling Mount); 160 x 47.66 mm / 6.30 x 1.88 in (Hard‐Ceiling Mount)
- Weight: 650 g / 1.43 lb
- Operating Temperature: 0 °C ~ 50 °C / 32 °F ~ 122 °F
- Operating Humidity: 10% to 90% (no condensation)
- Power: Terminal block (3 pin ), PoE; 12V DC / 24V AC / PoE (IEEE802.3af) Max. Power Consumption 9 W
- Warranty:
- What's Included:

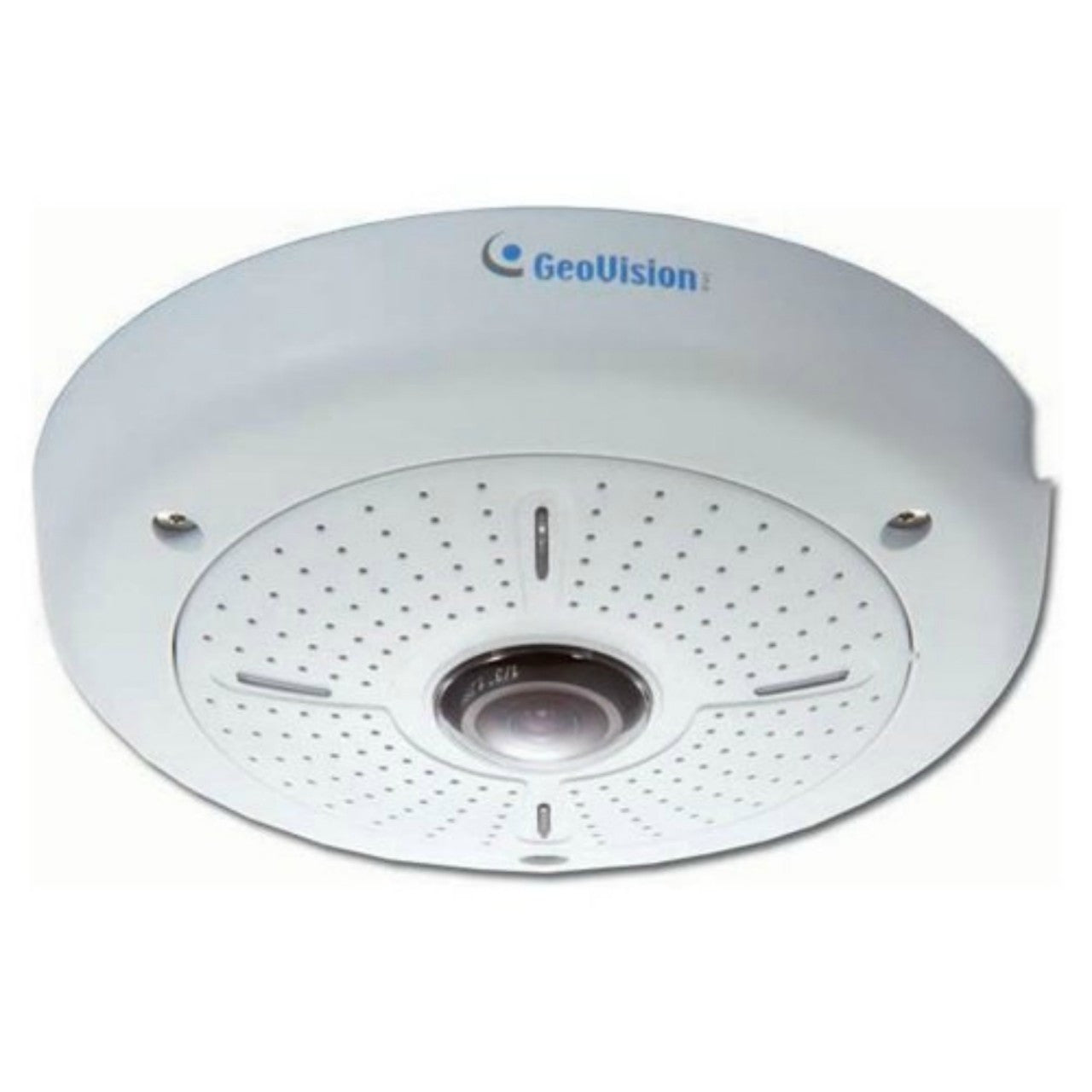

The GV‐FE110 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted
hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection.
Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert
notification through the Web interface using an IE browser. In addition, the GV‐FE110 seamlessly integrates with the GV‐System,
providing advanced monitoring and video management features.
The GV‐Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV‐FE110 on
the ceiling, Hard Ceiling Mount and In‐Ceiling Mount. In‐Ceiling Mount allows the GV‐FE110 to be mounted into the ceiling, revealing a
small portion of the camera.
