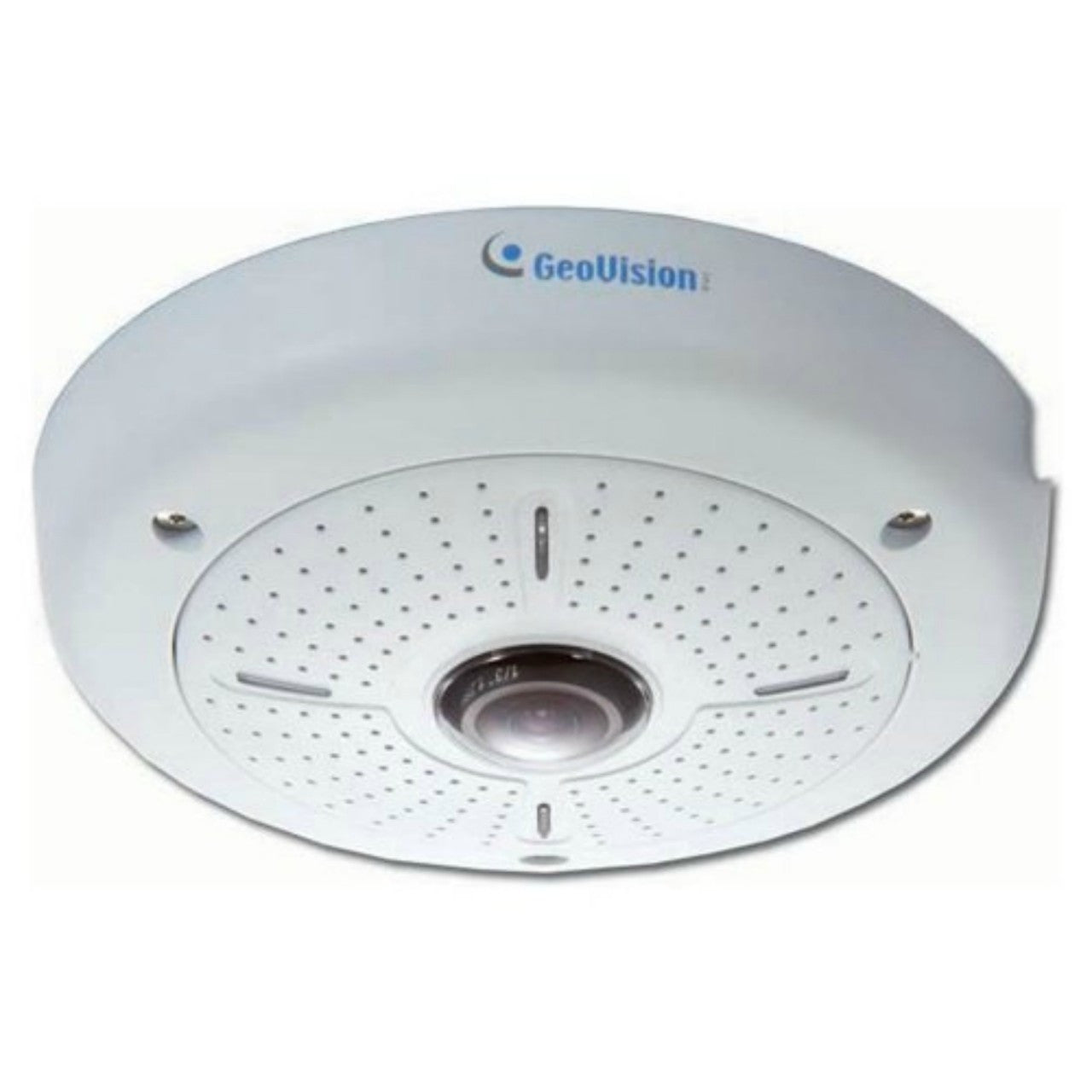

GeoVision GV-FE520 Fisheye IP Camera

GeoVision

GeoVision GV-FE520 Fisheye IP Camera

Sale price$693.00
Discontinued
SKU: GV-FE520

Contact

GeoVision GV-FE520 Fisheye IP Camera Features
  • Resolution: 2560 x 1920
  • Image Sensor: 1/2.5” progressive scan CMOS
  • Day/Night: Yes (electronic)
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 2 Lux at F/2.0
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: F/2.0
  • Focal Length: 1.6 mm
  • Zoom: Fixed
  • Iris: Fixed
  • Focus: Fixed
  • Field of View: Panoramic
  • Compression Styles: H.264, MJPEG
  • Frame Rate: 10 fps at 2560 x 1920
  • Image Settings: Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker‐less, Backlight Compensation, Image Orientation, Shutter Speed, Day / Night, WDR, Defog
  • Privacy Mask: Yes
  • Built-in Microphone: Yes
  • Audio Capabilities: Two-Way Audio
  • Alarm/Event Management:
  • ONVIF: Yes
  • Security: Tamper Alarm
  • Users: N/A
  • On-board Storage: Yes
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Indoor
  • Dimensions: 164 x 44.9 mm / 6.46 x 1.77 in (In‐Ceiling Mount); 160 x 44.9 mm / 6.30 x 1.77 in (Hard‐Ceiling Mount)
  • Weight: 650 g / 1.43 lb
  • Operating Temperature: 0 °C ~ 50 °C / 32 °F ~ 122 °F
  • Operating Humidity: 10% to 90% (no condensation)
  • Power: Terminal block (3 pin ), PoE; 12V DC / 24V AC / PoE (IEEE802.3af) Max. Power Consumption 9 W
  • Warranty: 2 years
GeoVision GV-FE520D Fisheye IP Camera Overview

The GV-FE520 / GV-FE521 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FE520 / GV-FE521 seamlessly integrates with the GV-System, providing advanced monitoring and video management features. The GV-Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV-FE520 / GV-FE521 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the GV-FE520 / GV-FE521 to be mounted into the ceiling, revealing a small portion of the camera.
