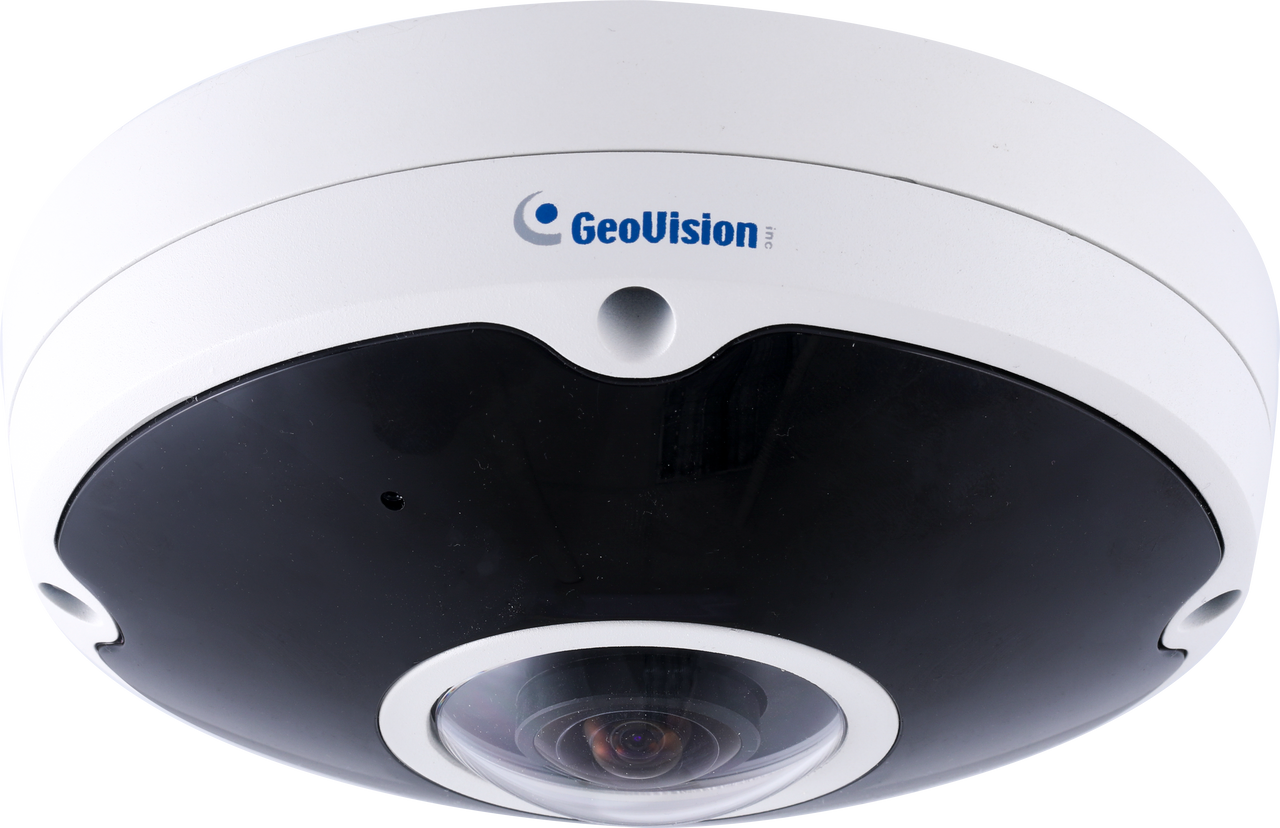

Geovision GV-FER12700 12MP H.265 Low Lux WDR IR Fisheye Rugged IP Camera

GV-FER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling and the wall. GV-FER12700 supports H.265 video codec to achieve better compression ratio while maintaining high video quality at reduced network bandwidths. Equipped with automatic IR‐cut filter and IR LEDs, GV-FER12700 is capable of day and night surveillance. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-DVR / NVR / VMS, providing advanced monitoring and video management features.

• 1/1.7" progressive scan CMOS
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 4000 x 3000
• Day and Night function (with removable IR-cut filter)
• Intelligent IR
• Vandal resistance (IK10+ for metal casing)
• Ingress protection (IP67)
• DC 12V / PoE+ (IEEE 802.3at)
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
• USB slot for GV-WiFi Adapter or USB hard drive
• One sensor input and one alarm output
• Built-in microphone
• Digital Object Tracking
• Provides 360° and 180° panorama view
• Stereographic projection to reduce the distortion of the image
• Different angle of view accessible by multiple users at the same time
• Playback from any view angle and zoom level
• No mechanical moving parts
• Two-way audio
• Wide Dynamic Range (WDR)
• Low lux enhancement
• 3D noise reduction
• Smart streaming
• Tampering alarm
• Virtual PTZ function
• Auto Pan function
• Privacy mask
• Visual automation
• Text overlay
• 31 languages on Web interface
• ONVIF (Profile S) conformant
• Recording assigned by GV-Edge Recording Manager (Windows version)
• TAICS IoT Cyber Security certified

Note:

• No memory card slot & local storage function for Argentina.
• Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
• Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
• For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
• Specifications are subject to change without notice.

Model No	Name	Details
GV-Mount100	Straight Tube and Junction Box Kit		Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1") Weight: 3.17 kg (6.99 lb)
GV-Mount101	Straight Tube Kit		Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1") Weight: 1.8 kg (3.97 lb)
GV-Mount200	Wall Pendant Mount		Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8") Weight: 900 g (1.98 lb)
GV-Mount203	Wall Mount and Junction Box		Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9") Weight: 2.95 kg (6.5 lb)
GV-Mount206	Wall Box Mount		Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96" Weight: 0.93 kg (2.06 lb)
GV-Mount 208-2	Swan Neck Mount		Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08") Weight: 10.5 kg (23.15 lb)
GV-Mount702	Extension Tube		Four options are available. Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm (Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7") Weight: 180 g or 390 g or 550 g or 800 g (0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903-1	Dome Housing		Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3" x 6.5") Weight: 900 g (1.98 lb)
GV-Mount904-1	Tilting Wall Mount Bracket		Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6") Weight: 350 g (0.77 lb)
GV-Mount912	Power Box Mount Bracket		Dimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4") Weight: 180 g (0.4 lb)
GV-WiFi Adaptor V2			Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10") Weight: 0.01 kg (0.02 lb)
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
