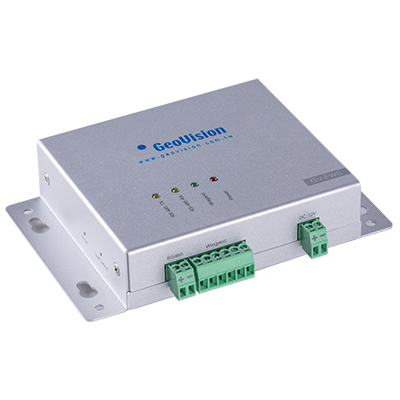

Geovision GV-FWC GV-Face Wiegand Converter V1.00

GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection. When connected via TCP/IP, a face image is transmitted along with the access data upon face recognition.

Additionally, the alarm output, e.g. a warning light, on GV-FWC can be triggered upon face recognition. For high security applications, GV-FWC can not only pass the face recognition access data to controllers but also require users to swipe paired cards on a connected Wiegand reader for double-authentication.

• Connection to controller via TCP/IP / Wiegand
• DC 12V / PoE+ (IEEE 802.3at)
• Support for up to 4 GV-Face Recognition Cameras / GV-AI FR / GV-FR Panel (coming)
• Alarm trigger upon face recognition of a Face Group
• Connectable to a Wiegand reader for double-authentication, face recognition plus card swipe
• Compatible with 3rd-party Wiegand controllers

• GV-FWC can only be connected using CAT-5e cables, TIA/EIA-568-B, with a maximum DC resistance of 9.38 ohms/100 m.
• All specifications are subject to change without notice.

Model No	Name	Details
GV-PA901	PoE Adapter		The GV-PA901 PoE adapter is designed to provide power and network connection to IP cameras over a single Ethernet cable. Dimensions (L x W x H): 69 x 40 x 93 mm / 2.7 x 1.57 x 3.66" Weight: 250 kg / 0.55 lb
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
