GeoVision
GeoVision GV-Housing101 for Box Cameras
GeoVision GV-Housing101 Features
- Power: DC 12V, 1A; AC 24V, 0.58A
- Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
- Dimensions: (L x W x H) 406 x 145 x 109 mm (16 x 5.7 x 4.3’’)
- Weight: 4.69 kg (10.34 lb) (including Supporting Tube)
- Ingress Protection: IP67
- Vandal Resistance: IK10 (for metal casing)
- Compatible cameras: GV‐BX120D; GV‐BX130D‐0 / BX130D‐1; GV‐BX140DW;GV‐BX220D‐2 / BX220D‐3; GV‐BX320D‐0 / BX320D‐1; GV‐BX520D; GV‐BX1200 Series; GV‐BX1300 Series; GV‐BX1500 Series; GV‐BX2400 Series; GV‐BX2500 Series; GV‐BX2600; GV‐BX3400 Series; GV‐BX5300 Series
- *GV‐BX1500‐8F and GV‐BX3400‐8F are not supported.
- Power supply for heater & fan not included
GeoVision GV-Housing101 Overview

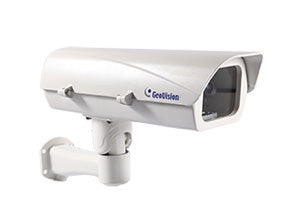

The GV‐Housing101 is a housing box designed to support the outdoor installation of GV‐BX Series and other Box Cameras with external protection. It conforms to IP67 and IK10 standards, and is equipped with a heater and a fan. The GV‐Housing101 also supports optional GV‐Mount accessories, allowing the Box Camera to be installed on the pole, convex and concave surfaces. Adopting the housing box enables flexible installation of the Box Camera to meet your needs for IP surveillance in various environmental conditions.
