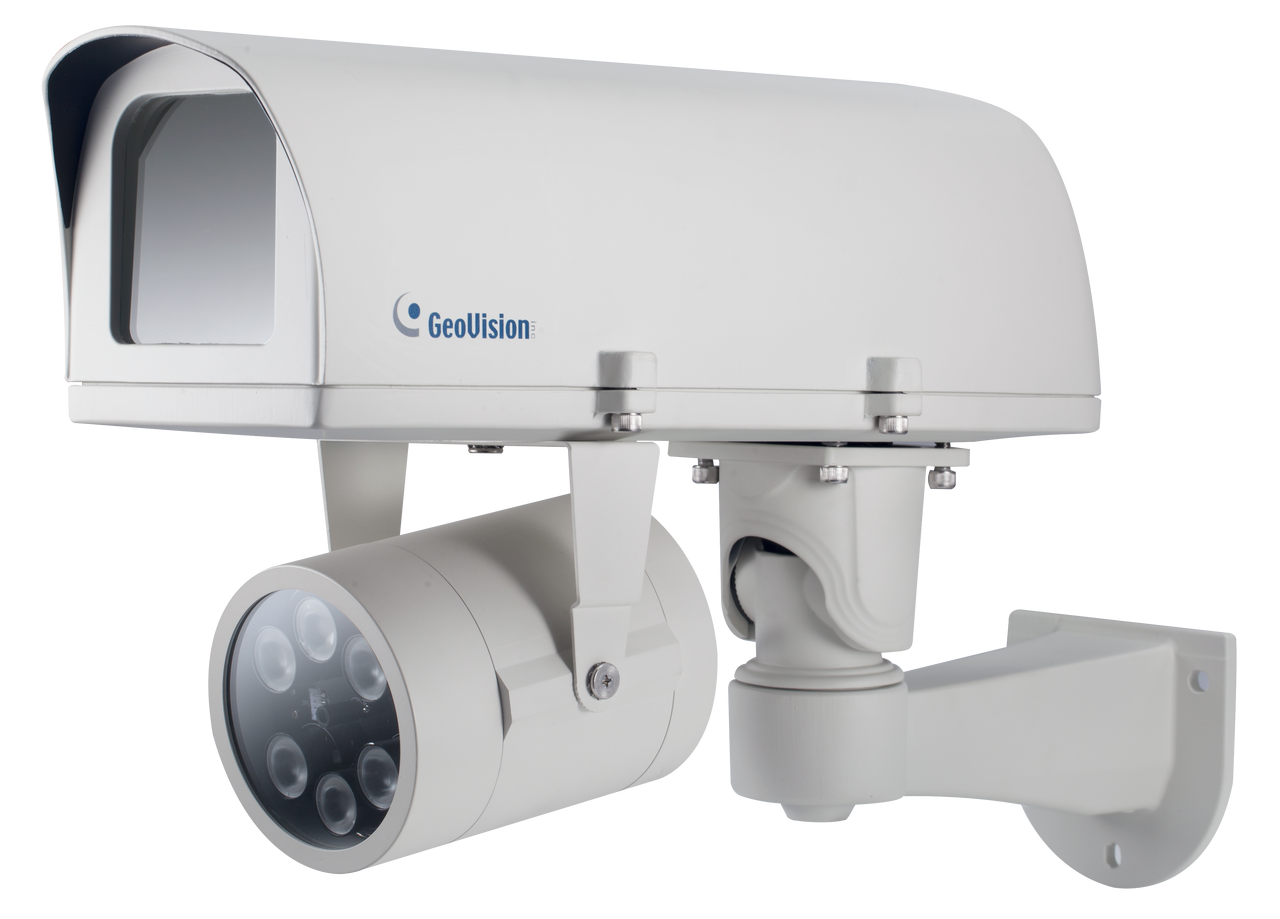

The GV-Housing103 is a housing box designed to support the outdoor installation for the following Box Camera models with external protection. It conforms to IP67 and IK10 standards, and is equipped with 6 IR LEDs for night operations, allowing up to 60 m (196.85 ft) IR effective distance. The GV-Housing103 also supports optional GV-Mount accessories, allowing the Box Camera to be installed on the pole, convex and concave surfaces. Adopting the housing box enables flexible installation of the Box Camera to meet your needs for IP surveillance in various environmental conditions.
| Model No | Name | Details | |
|---|---|---|---|
| GV-Mount300-1 | Convex Corner Adapter Kit |  | Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2") Weight: 4.27 kg (9.41 lb) |
| GV-Mount310-1 | Concave Corner Adapter Kit |  | Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2") Weight: 2.96 kg (6.53 lb) |
| GV-Mount400-1 | Pole Mount Bracket Kit (Ø 4 ~ 6") |  | Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6" |
| GV-Mount410-1 | Pole Mount Bracket Kit (Ø 6 ~ 7.5") |  | Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41") Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5" |
