GV-LPR2812-DL is capable of recognizing license plate numbers with its built-in deep learning LPR processor. GV-LPR2812-DL can compare captured license plates either with its on-the-edge standalone database, or the database stored at the GV-ASManager access control system. When there is a match, GV-LPR2812-DL can grant access for the vehicle by opening a gate or barrier.

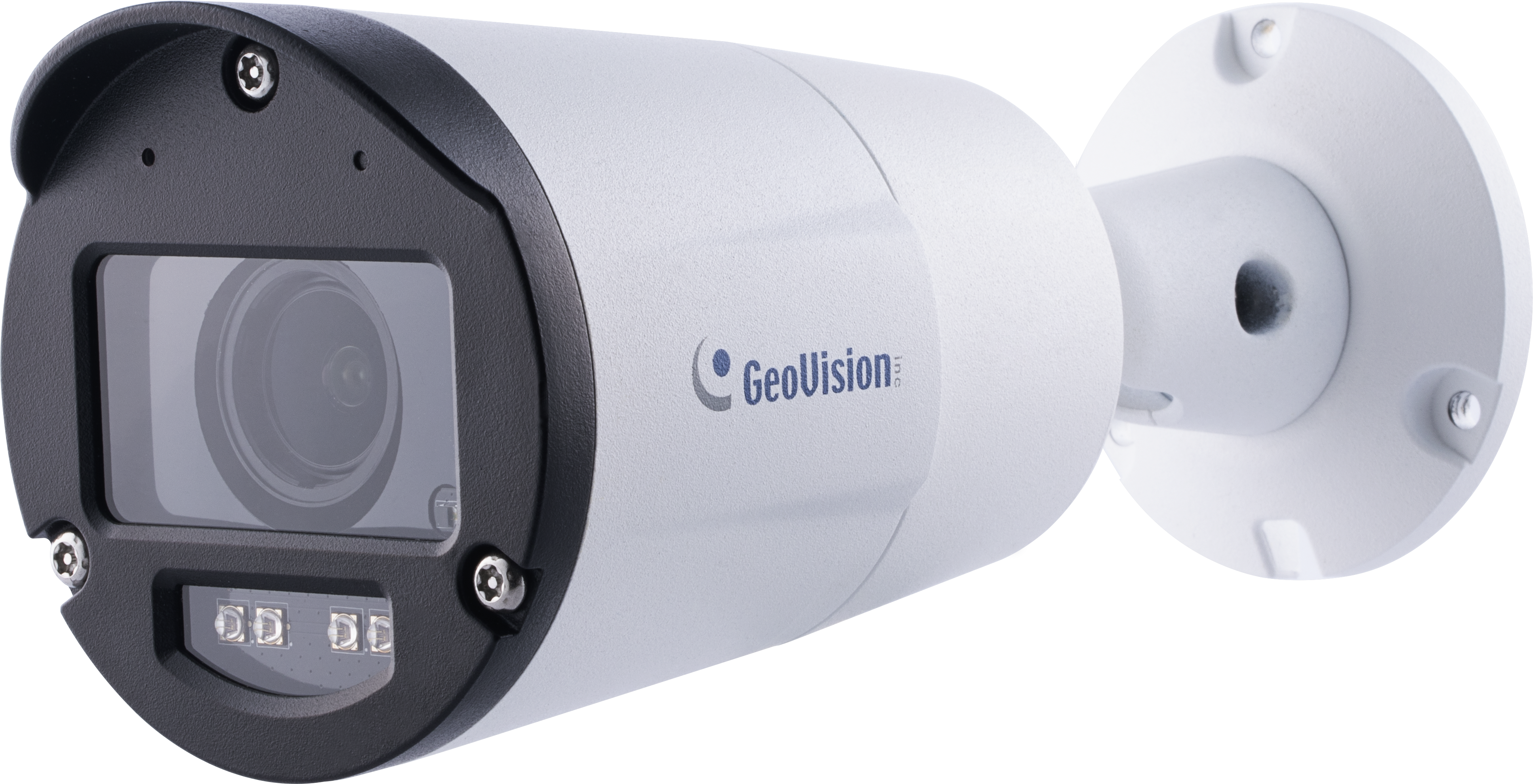

GV-LPR2812-DL is a 2 MP, 10x zoom color network camera designed to recognize non-reflective and reflective license plates on vehicles traveling at up to 100 km/h (62 mph). Thanks to its motorized lens and intelligent IR, the camera’s zoom and focus can be adjusted remotely and it can also automatically adjust its shutter speed to the scene to capture clear license plate images in low-light settings. It adheres to IP67 and IK10 standards and can withstand temperatures ranging from -20°C (-4°F) to 55°C (131°F).

• Built-in deep learning LPR processor for license plate recognition
• Dual-lane recognition
• 1/2.8" progressive scan super low lux CMOS
• Min. illumination at 0.04 lux
• Third streams from H.265, H.264 and MJPEG
• Up to 30 fps at 1920 x 1080
• Motorized varifocal lens for remote focus / zoom adjustment
• Intelligent IR
• IR distance up to 22 m (70 ft)
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• DC 12V / PoE (IEEE 802.3af)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• Standalone database
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
• Digital I/O (1 in / 1 out)
• Recognize vehicles with speeds up to 100 km/h (62 mph)
• Log Export
• LPR results overlaid on recognition images
• One-way audio capable
• Motion detection
• Privacy Mask
• IP address filtering
• CE, FCC, UKCA, LVD, RoHS compliant
