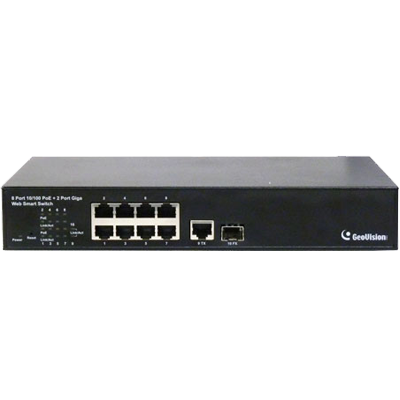

Geovision GV-POE0801 8-port 10/100 Mbps Web Managed Base T(x)PoE+Web Smart PoE Switch 2 uplink ports.

The GV-POE0801 is a 8-port 10/100BaseTX, PSE plus 2-port Gigabit Uplink (1*TP, 1*SFP) Desktop Web Smart PoE Switch. The switch supports IEEE 802.3at Power over Ethernet standard, up to 30 W per port and maximum 130 W power consumption per system, and no special network cable is required for connecting your powered devices (PD), such as IP cameras. The switch also provides exceptionally smart Web management features, such as VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, etc. The switch is designed for small or medium network environment to strengthen its network connection and efficiency. It also gives you the option of installing it in a 19" cabinet with a rack-mount kit or underneath a desk.

• 8-port 10/100BaseTX, PSE plus 2-port Gigabit Uplink (1xTP, 1xSFP)
• IEEE 802.3at Compliant (8 Ports at Full 15.4 W)
• Web-based Configuration and Management
• VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, Bandwidth Control, Broadcast Storm Control
• Max. 130 W Power Consumption
• 11" Metal Case
• Up to 8 GV-IP Cameras support

Model No	Name	Details
GV-LC			The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m.
GV-LC10			The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km.
