GeoVision GV-TBL4710 4MP Motorized Zoom WDR Pro Bullet Network Camera
GeoVision GV-TBL4710 Dimensions
GeoVision GV-TBL4710 4MP Motorized Zoom WDR Pro Bullet Network Camera

GeoVision

GeoVision GV-TBL4710 4MP Motorized Zoom WDR Pro Bullet Network Camera

$319.00
SKU: GEV-84-TBL4710-0010
Quantity:

Contact

Geovison GV-TBL4710 Specifications

Camera

  • Image Sensor: 1/3" progressive scan low lux CMOS
  • Picture Elements: 2592 (H) x 1520 (V)

  • Minimum Color: 0.005 Lux (F1.4, AGC ON) Illumination IR ON 0 Lux

  • Shutter Speed: Auto / Manual (1/6 ~ 1/100000 sec)

  • White Balance: Auto / Manual

  • Gain Contro:l Auto / Manual

  • S/N Ratio: 52 dB

  • WDR: Yes

  • Dynamic Range: Up to 120 dB

Lens

  • Megapixel: 4 MP
  • Day / Night: Yes (with removable IR‐cut filter)
  • Lens Type: Motorized varifocal lens
  • Focal Length: 2.8 ~ 12 mm
  • Maximum Aperture: F/1.4
  • Mount: Ø14 mm
  • Horizontal FOV: 27 ~ 91°
  • IR LED Quantity: 2 IR LED
  • Max. IR Distance: 30 m (100 ft)

Operation

  • Video Compression: H.265, H.264, MJPEG
  • Video Streaming: Triple streams from H.265, H.264 or MJPEG

Video Resolution

  • Main Stream: 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080
  • Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
  • Third Stream: (Closed by Default) 704 x 576, 704 x 288, 640 x 360, 352 x 288
  • Frame Rate: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
  • Video Analytics: Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
  • Image Setting: Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation
  • Audio Compression G.711
  • Audio Support Two‐way Audio (external microphone and speaker required)
  • Digital I/O: Input 1 Input, dry contact, NO / NC, Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)

Network

  • Interface:10/100 Ethernet
  • Protocol: 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

  • Camera Angle Adjustment: Pan 0° ~ 360°, Tilt 0° ~ 120°, Rotate 0° ~ 360°
  • Connectors: DC Jack, PoE
  • Ethernet: RJ‐45
  • Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply
  • Digital: I/O 4‐pin terminal block pitch 3.5 mm (0.14”)
  • Local Storage: Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) * UHS‐II card type is not supported.

General

  • Operating Temperature: ‐35°C ~ 60°C (‐22°F ~ 140°F)
  • Humidity: 10% ~ 90% (no condensation)
  • Power Source: 12 V DC / PoE (IEEE802.3af)
  • Max. Power Consumption: 9 W
  • Dimensions: 244 × 96 ×74 mm (9.6” × 3.8” × 2.9”)
  • Weight: 0.58 kg (1.28 lb)
  • Ingress Protection: IP67
  • Vandal Resistance: IK10 for metal casing
  • Regulatory: FCC, CE, RoHS compliant

Web Interface

  • Installation: Web‐based configuration
  • Maintenance: Firmware upgrade through Web Browser or Utility
  • Access from Web Browser: Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
  • Language: Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

  • Software Supported: GV‐DVR / NVR (V8.8.0), GV‐VMS (V17.2.0), GV‐Control Center (V3.5.1), GV‐Edge Recording Manager Windows version (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0)
  • Smart Device Access: GV‐Eye for iOS and Android
  • Live Viewing Browser: (IE, Edge, Chrome, Firefox), Mobile App

Geovison GV-TBL4710 Overview

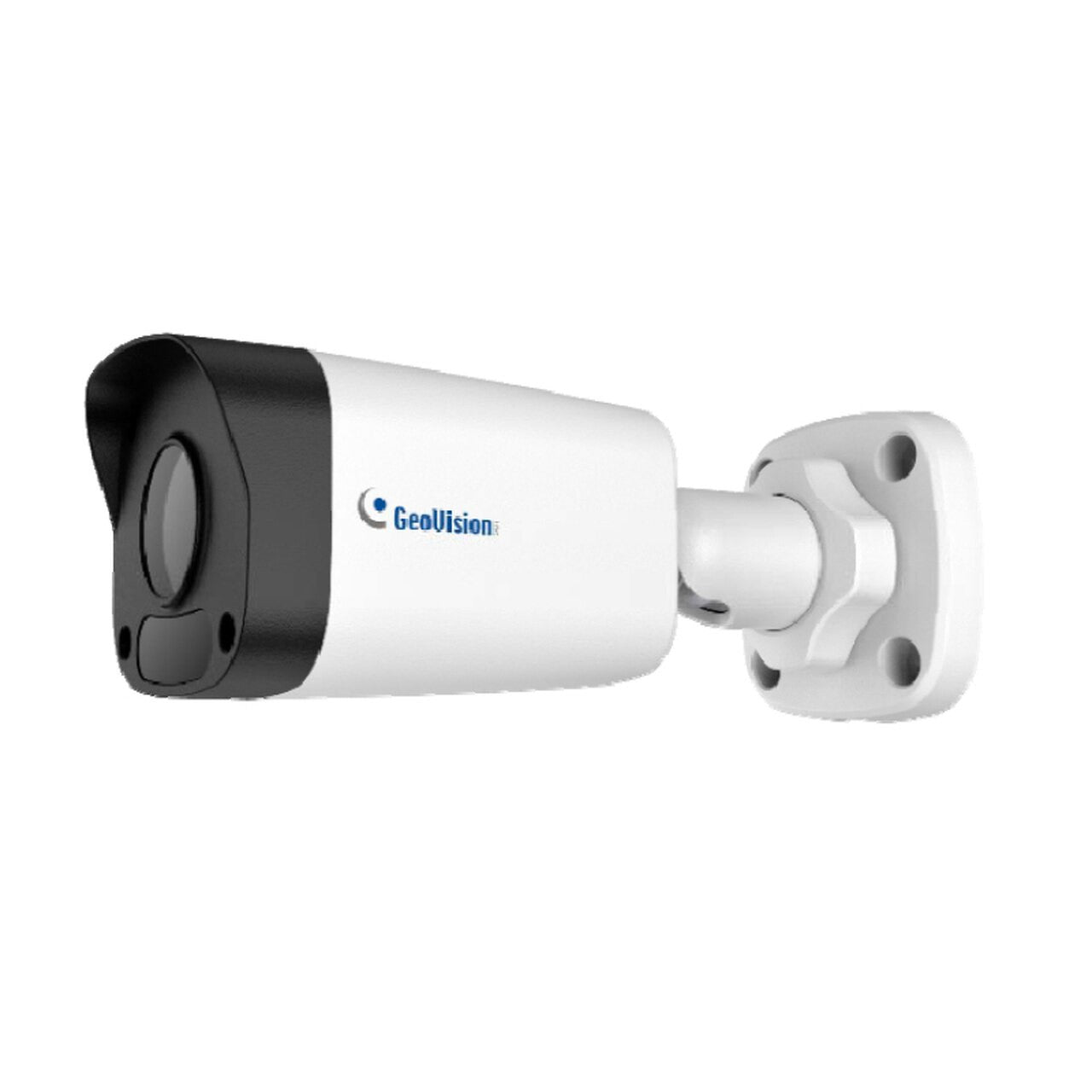

The Geovsion GV-ABL4710 Bullet IP Camera is an outdoor network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 standards and can be powered through PoE.
