GeoVision GV-TBL8710 8MP Motorized Zoom WDR Pro Bullet Network Camera
GeoVision GV-TBL8710 Side Dimensions
GeoVision GV-TBL8710 Front Dimensions
GeoVision GV-TBL8710 8MP Motorized Zoom WDR Pro Bullet Network Camera

GeoVision

GeoVision GV-TBL8710 8MP Motorized Zoom WDR Pro Bullet Network Camera

Sale price$470.00
SKU: GEV-84-TBL8710-0010
Quantity:

Contact

Geovison GV-TBL8710 Specifications

Camera

  • Image Sensor: 1/2" progressive scan super low lux CMOS
  • Picture Elements: 3840 (H) x 2160 (V
  • Minimum Color: 0.003 Lux (F1.5, AGC ON) Illumination IR ON 0 Lux

  • Shutter Speed: Auto / Manual (1/6 ~ 1/100000 sec)

  • White Balance: Auto / Manual

  • Gain Contro:l Auto / Manual

  • S/N Ratio: 52 dB

  • WDR: Yes

  • Dynamic Range: Up to 120 dB


Lens

  • Megapixel: 8 MP
  • Day / Night: Yes (with removable IR‐cut filter)
  • Lens Type: Motorized varifocal lens
  • Focal Length: 2.8 ~ 12 mm
  • Maximum Aperture: F/1.5
  • Mount: Ø14 mm
  • Horizontal FOV: 114.8 ~ 47.3°
  • IR LED Quantity: 3 IR LED
  • Max. IR Distance: 50 m (165 ft)

Operation

  • Video Compression: H.265, H.264, MJPEG
  • Video Streaming: Triple streams

Video Resolution

  • Main Stream: 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
  • Sub Stream: 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
  • Third Stream: (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
  • Frame Rate:20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1440 / 2560 x 1440 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
  • Video Analytics: Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
  • Image Setting: Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation
  • Audio Compression G.711
  • Audio Support Two‐way Audio (external microphone and speaker required)
  • Digital I/O: Input 1 Input, dry contact, NO / NC, Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)

Network

  • Interface:10/100 Ethernet
  • Protocol: 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

  • Camera Angle Adjustment: Pan 0° ~ 360°, Tilt 0° ~ 120°, Rotate 0° ~ 360°
  • Connectors: DC Jack (DC 12V, 1.25A), PoE
  • Ethernet: RJ‐45
  • Audio: 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply
  • Digital: I/O 4‐pin terminal block pitch 3.5 mm (0.14”)
  • Local Storage: Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) * UHS‐II card type is not supported.
  • TV Out BNC Connector

General

  • Operating Temperature: ‐35°C ~ 60°C (‐22°F ~ 140°F)
  • Humidity: 10% ~ 90% (no condensation)
  • Power Source: 12 V DC / PoE (IEEE802.3af)
  • Max. Power Consumption: 10 W
  • Dimensions: 244 × 96 ×74 mm (9.6” × 3.8” × 2.9”)
  • Weight: 0.58 kg (1.28 lb)
  • Ingress Protection: IP67
  • Vandal Resistance: IK10 for metal casing
  • Regulatory: FCC, CE, RoHS compliant

Web Interface

  • Installation: Web‐based configuration
  • Maintenance: Firmware upgrade through Web Browser or Utility
  • Access from Web Browser: Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
  • Language: Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

  • Software Supported: GV‐DVR / NVR (V8.8.0), GV‐VMS (V17.2.0), GV‐Control Center (V3.5.1), GV‐Edge Recording Manager Windows version (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0)
  • Smart Device Access: GV‐Eye for iOS and Android
  • Live Viewing Browser: (IE, Edge, Chrome, Firefox), Mobile App

Geovison GV-TBL4710 Overview

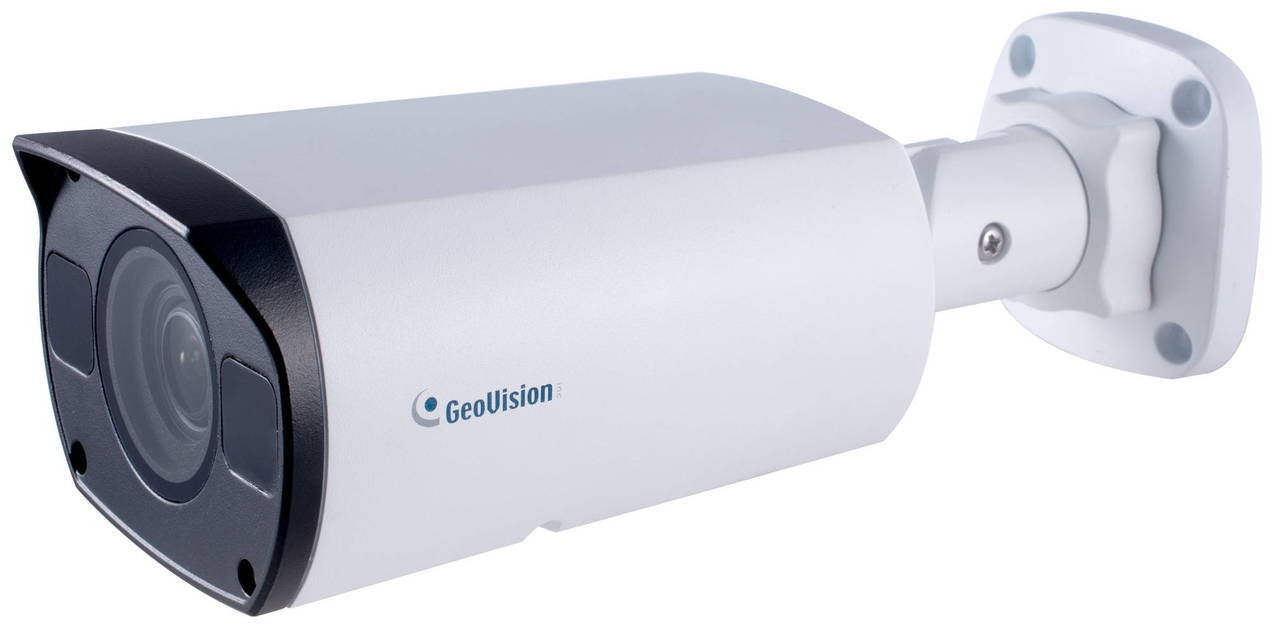

The Geovsion GV-TBL8710Bullet IP Camera is an outdoor network camera equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. GV‐TBL8710 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.
