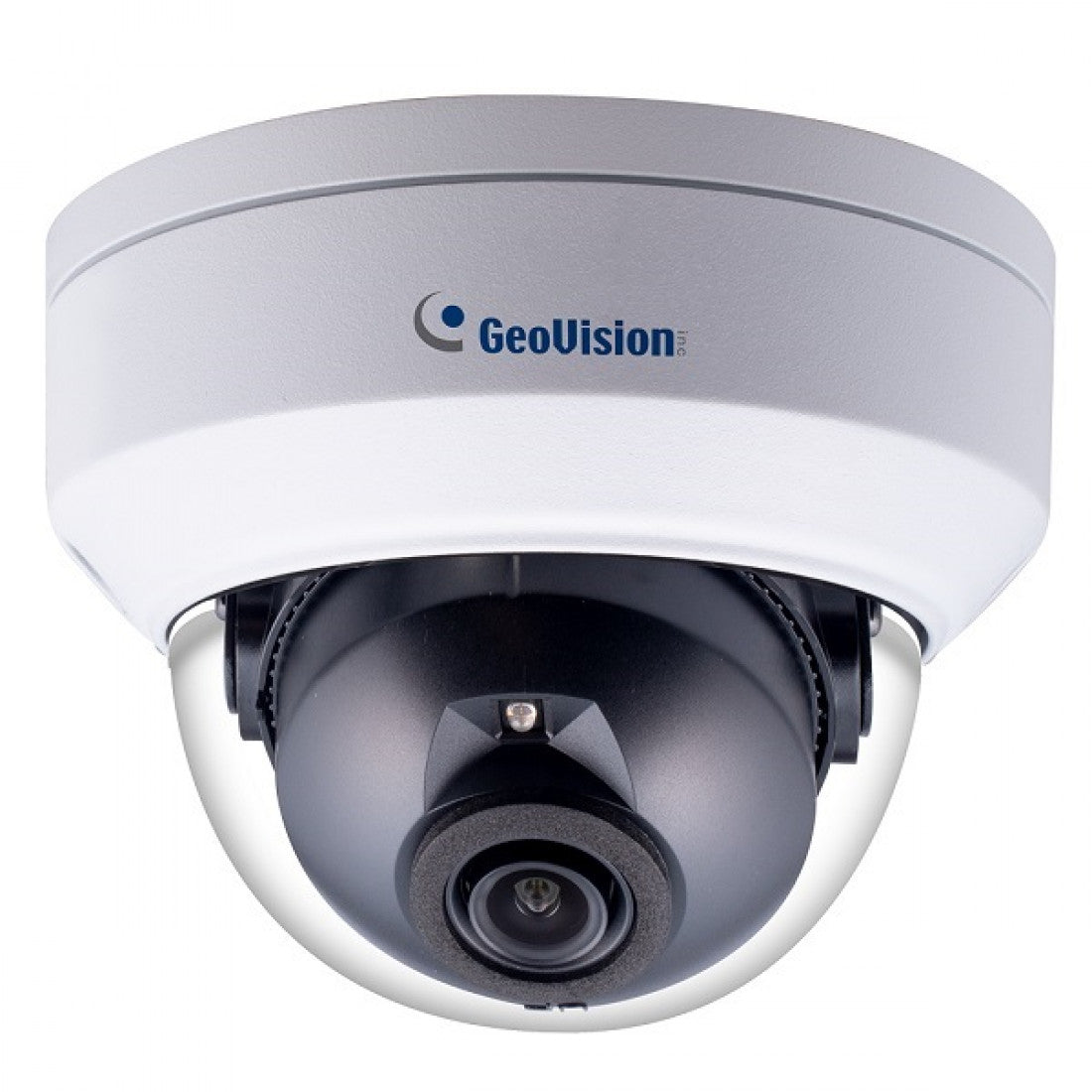

Geovision GV-TDR4703-4F 4MP Outdoor Dome IP Camera, 4mm Lens

• 1/3" progressive scan super low lux CMOS
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2688 x 1520
• Intelligent IR
• IR distance up to 100 ft
• Day and Night function (with removable IR-cut filter)
• Wide Dynamic Range Pro (WDR Pro)
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• Two-way audio
• DC 12V / PoE (IEEE 802.3af)

Camera

• Image Sensor - 1/3" progressive scan super low lux CMOS
• Picture Elements - 2688 (H) x 1520 (V)
• Minimum Illumination - Color - 0.01 Lux, IR ON - 0 Lux
• Shutter Speed - Auto/Manual (1~1/100000sec)
• White Balance - Auto/Manual
• Gain Control - Auto/Manual
• S/N Ratio - 56 dB
• WDR Pro - Yes
• Dynamic Range - 120 dB

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 4mm
• Maximum Aperture - F/2.0
• Mount - M12
• Horizontal FOV - 95°
• Operation - Focus - Fixed, Zoom - Fixed, Iris - Fixed
• IR LED Quantity - 1 IR LEDs
• Max. IR Distance - 100 ft

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams from H.265, H.264 or MJPEG
• Video Resolution - Main Stream - 2688 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, Sub Stream 1280 x 720, 704 x 576, 704 x 288, 640 x 480,640 x 360 (Default), 352 x 288, Third Stream (Closed by Default) 640 x 360, 352 x 288
• Frame Rate - 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 1920 x 1080 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection, Intrusion, Human Body Detection. *Tampering alarm, audio detection, Intrusion and Human Body Detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e‐mail and FTP
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation
• Audio Compression - G.711
• Audio Support - Two‐way Audio (external microphone and speaker required)
• Digital Input - 1 Input, dry contact, NO / NC
• Digital Output - Relay Output (1A 30V DC / 0.3A 125V AC)

Network

• Interface - 10/100 Ethernet
• Protocol - ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Temperature Detector - No
• Camera Angle Adjustment - Pan - 0° ~ 360°, Tilt - 0° ~ 90°, Rotate - 0° ~ 360°
• Connectors - Power - DC Jack (DC 12 V, 1.25 A), PoE, Ethernet - RJ‐45 Connector, Audio - 1 in (Audio In Wire); 1 out (Audio Out Wire), Digital I/O - I/O wires, Local Storage - Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10), UHS‐II card type is not supported.

General

• Operating Temperature - ‐‐31°F ~ 140°F
• Humidity - 0% ~ 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 5.5 W
• Dimension - Ø 4.28" x 3.2"
• Weight - .99 lb)
• Ingress Protection - IP67
• Vandal Resistant - IK10 for metal casing)
• Regulatory - FCC, CE, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or GV‐IP Device Utility (V8.7.2.1)
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

• Software Supported - GV‐VMS (V17.4.0 / V18.1.1), GV‐DVR / NVR (V8.9.0), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V1.4.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.1.0.0), GV‐Mobile Server (V1.5.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
