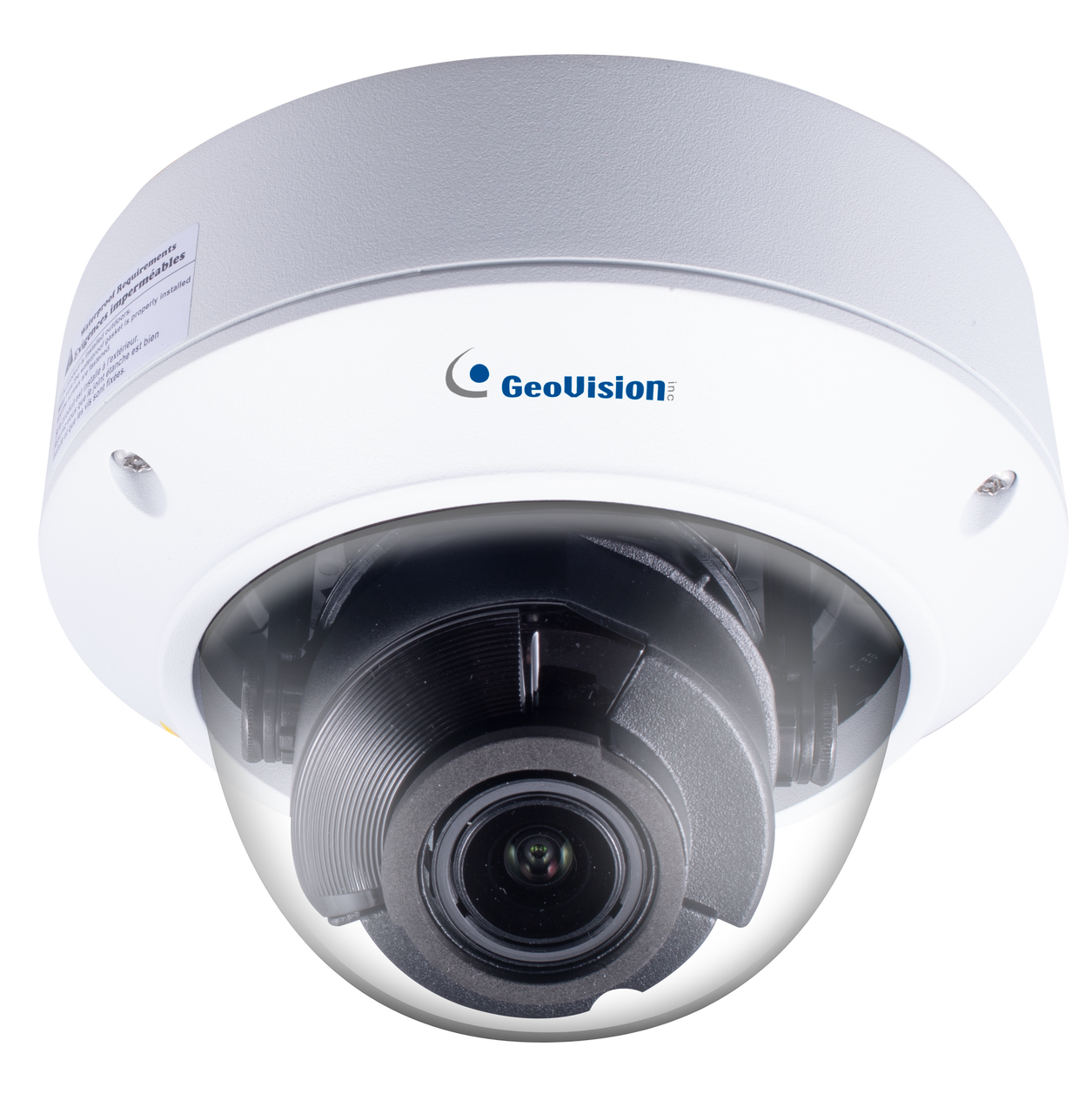

Geovision GV-TVD4700 4MP H.265 Low Lux WDR IR Vandal Proof IP Dome
Geovision GV-TVD4700 4MP H.265 Low Lux WDR IR Vandal Proof IP Dome

GeoVision

Geovision GV-TVD4700 4MP H.265 Low Lux WDR IR Vandal Proof IP Dome

$275.00
SKU: 125-TVD4700-000
Quantity:

Contact

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 2592 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Two-way audio
  • Wide Dynamic Range (WDR)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • Tampering alarm
  • ONVIF (Profile G, S, T) conformant

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72" x 13.15")
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212P
GV-Mount211-2 Wall Mount and Junction Box Dimensions: Φ253 x125 x 125 mm (Φ10 x 4.9 x 4.9")
Weight: 0.92 kg (2.0 lb)
GV-Mount212-2 Wall Box Mount Dimensions: Φ145x 40 mm (Φ5.7" x 1.6")
Weight: 0.24 kg (0.5 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4" x 9.17" x 6.3")
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6" x 11.4" x 6.6")
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7" x 4.7" x 2.1")
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6"~ 5")
*must be used with GV-Mount211-2
GV-Mount606 In-Ceiling Mount Dimensions: Φ235 x 63 mm (Φ9.3" x 2.5")
In-ceiling hole: Φ195 mm (Φ7.67")
Weight: 0.49 kg (1.1 lb)
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7")
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and types of ports.
