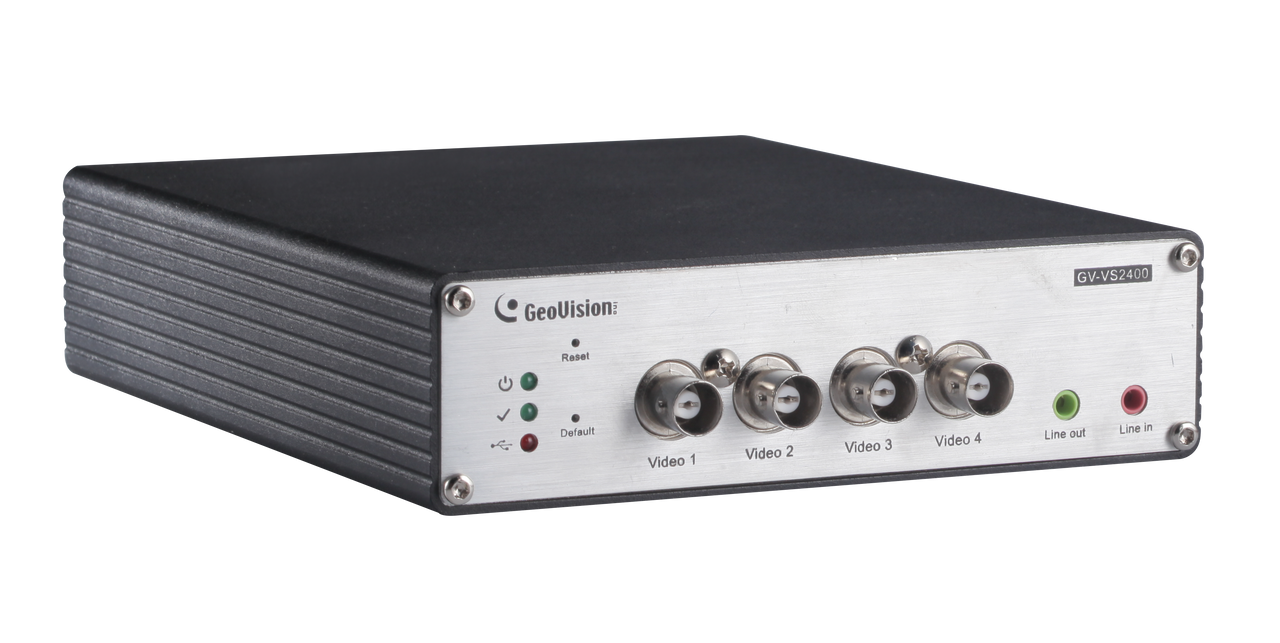

GV-VS2400 is a powerful H.264 HD Video Encoder with compact size and supports 4-channel TVI 1080p / 720p and analog 960H / D1 real-time video. It can be fully integrated with GV-DVR / NVR / VMS to form a powerful IP surveillance solution. GV-VS2400 converts analog signals into high-resolution digitized images up to 2 megapixels and supports over 50 PTZ models to fulfill various project demands. It can record videos to a local USB storage, performing as a compact video recorder. It is also able to trigger Tampering Alarm alerts when cameras are tampered with, which can prevent criminal activities.
- H.264
- 4-channel TVI 1080p / 720p and analog 960H / D1 real-time video
- 12V DC
- Tampering alarm
- USB HDD Storage
- Support UMTS / 3G / 3.5G / 4G
- Automatic switch between WiFi and 3G
- Support over 50 PTZ models
- Support 29 languages on Web interface
- HD-TVI 1.0 / 2.0 standard
- ONVIF (Profile S) conformant
Note:
- The GV‐HD Video Encoder cannot work with microphones that acquire power from the unit. Use microphones that have external power supply.
- GV-VS2400 supports 1 external hard disk (2.5" or 3.5") with up to 4 TB capacities.
- It is not recommended to use the flash USB drive with GV-VS2400 because of its slow read and write speed.
- When transmitting video signals over a long distance, it is highly recommended to use 5C-FB coaxial cables or above to minimize the degradation of image quality. The transmission distance should be within 300 m (984 ft).
- Product design and specifications are subject to change without notice.
Accessories
| DC Male-to-Male Cable / DC 1-Male to 4-Female Cable |  | DC Male-to-Male Cable and DC 1-Male to 4-Female Cable are both used to power the cameras through the GV-Video Server. For instance, you can purchase four DC Male-to-Male Cables and one DC 1-Male to 4-Female Cable to power four cameras through the GV-Video Server. | |
| GV-Relay V2 |  | Working with the GV-Relay V2, the GV-Video Server is capable of driving the loads of relay outputs over 5 volts. | |
| GV-WiFi Adaptor V2 | The WiFi Adaptor V2 is designed to connect the GV IP devices, such as GV-Video Server, to the wireless network. | ||
| Wall Hook |  | Wall Hook is used to mount GV-Video Server to the wall. | |
| DIN-rail Hook |  | DIN-rail Hook is used to mount GV-Video Server to a 35-mm (1.38-in) DIN rail. | |
| Rack Mount |  | Rack Mount is used to mount up to 3 video servers to a 19-in (482.6-mm) rack. | |
