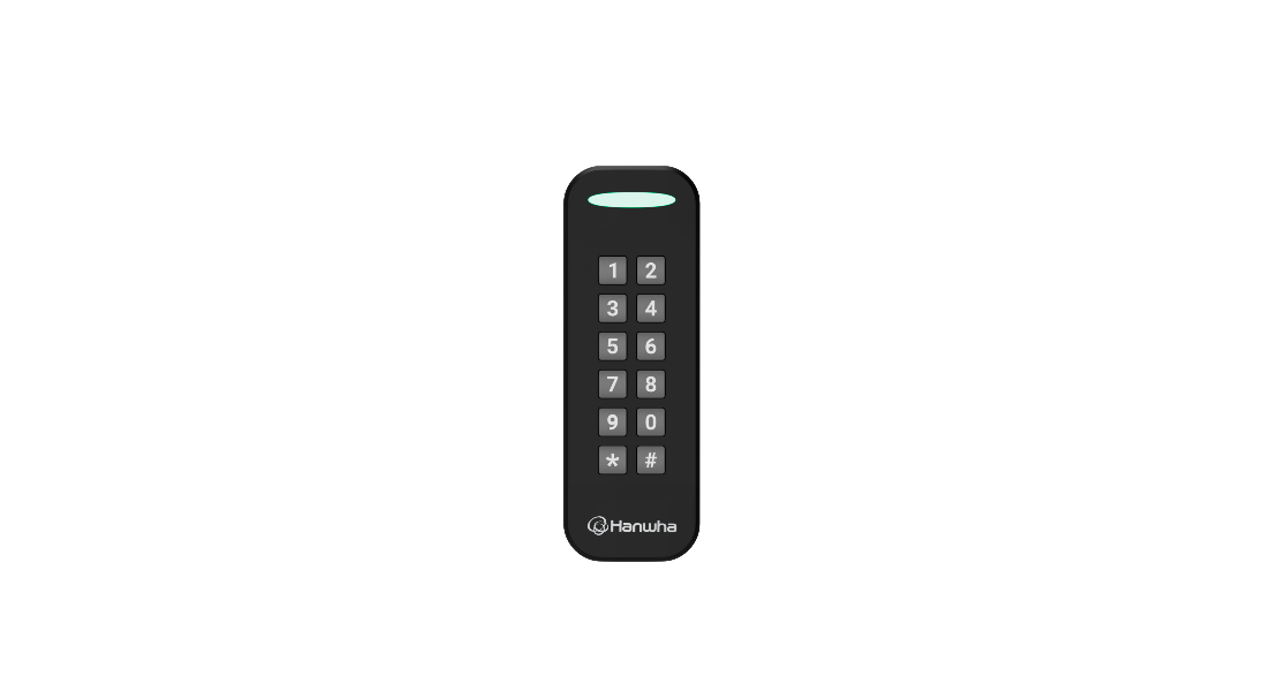

Hanwha NOD-AX15S Mullion Mount Credential Reader

Multi-technology mullion keypad reader

• 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3
• Auto-Detect for Wiegand or OSDP infrastructures
• Remote firmware upgrade support for radio enable/disable and control sequencing
• Supports all Ethos-supported credentials (NFC, PROX, Bluetooth)
• 10-key mechanical keypad
• Accelerometer-based tamper detection
• Typical read range: 2 inches
• EAL6+ Secure Element
• IP65 or better
• Power: 5–24 VDC
• Current draw: 500 mA @ 12 VDC
• Dimensions: 5.25" x 1.81" x 0.93" (133.4mm x 46mm x 23.5mm)
• Regulatory compliance: FCC, IC, CE, UL294, OSDP Verified V2.2
• Plastics: UL94-V0, UL746C-F1 for UV/water resistance
• Lifetime warranty
• Made in USA

Multi-technology mullion keypad reader, 13.56 MHz (NFC), 125 kHz (PROX), Bluetooth BLE 5.3, Auto-Detect for Wiegand or OSDP infrastructures, Remote firmware upgrade support for radio enable/disable and control sequencing, Supports all Ethos-supported credentials (NFC, PROX, Bluetooth), 10-key mechanical keypad, Accelerometer-based tamper detection, Typical read range: 2 inches, EAL6+ Secure Element, IP65 or better, Power: 5–24 VDC, Current draw: 500 mA @ 12 VDC, Dimensions: 5.25" x 1.81" x 0.93" (133.4mm x 46mm x 23.5mm), Regulatory compliance: FCC, IC, CE, UL294, OSDP Verified V2.2, Plastics: UL94-V0, UL746C-F1 for UV/water resistance, Lifetime warranty, Made in USA
