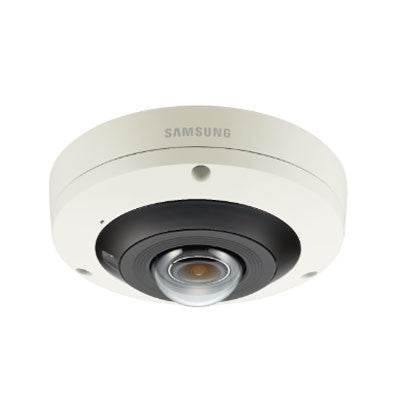

Hanwha PNF-9010R 9MP Indoor IR Fisheye Dome Camera

Hanwha PNF-9010R Features

• Max Resolution: 4000 x 3000
• Image Sensor: 1/1.7" 12.4M Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3Lux (F2.2, 30IRE), B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 15m (49.21ft)
• Lens Type: Board-in type
• Focal Length: 2.1mm / F2.2
• Zoom: 16x Digital PTZ
• Iris: N/A
• Focus: Simple focus / Manual, Remote control via network
• Field of View: H : 180° / V : 180° / D : 180°
• Compression Styles: H.265/H.264/MJPEG
• Frame Rate: H.265/H.264 : 20fps@4000 x 3000, 25fps@under 2992 x 2992, MJPEG : Max. 15fps
• WDR Technology: Yes, 120 dB
• Image Settings: Day & Night, Backlight Compensation, Wide Dynamic Range 120dB, Contrast Enhancement, Digital Noise Reduction SSNR, Defog, Motion Detection; Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
• Intelligent Video Analytics: Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Defocus detection
• Built-in Microphone: Yes
• Audio Capabilities: Audio In Selectable (Mic in / Line in / Built-in mic), Audio Out Line out (3.5mm mono jack)
• Alarm/Event Management: Alarm input, Motion detection, Video analytics, Audio detection, Network disconnectSD card error, NAS error; File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 20 users at unicast mode
• On-board Storage: Yes, Micro SD/SDHC/SDXC up to 128GB
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø146.0 x 63.4mm (Ø5.75" x 2.5")
• Weight: 805g (1.77 lb)
• Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: 12V DC ±10%, PoE (IEEE802.3af, Class3) / 12V DC: Max. 11W, PoE : 12W
• Warranty: 3 Years

Hanwha/Hanwha PNF-9010R Overview

The PNF-9010R is a 9MP indoor fisheye camera featuring Hanwha's WiseStream technology. Additional features include True D/N, triple codec H.265/H.264/MJPEG, people counting and heat map analytics, SD card slot (up to 128GB), 2-way audio, built-in mic, simple focus, PoE/DC dual power, IK10 and metal housing. The PNF-9010R is ideal for situational awareness, and applications requiring a wide area of surveillance.
