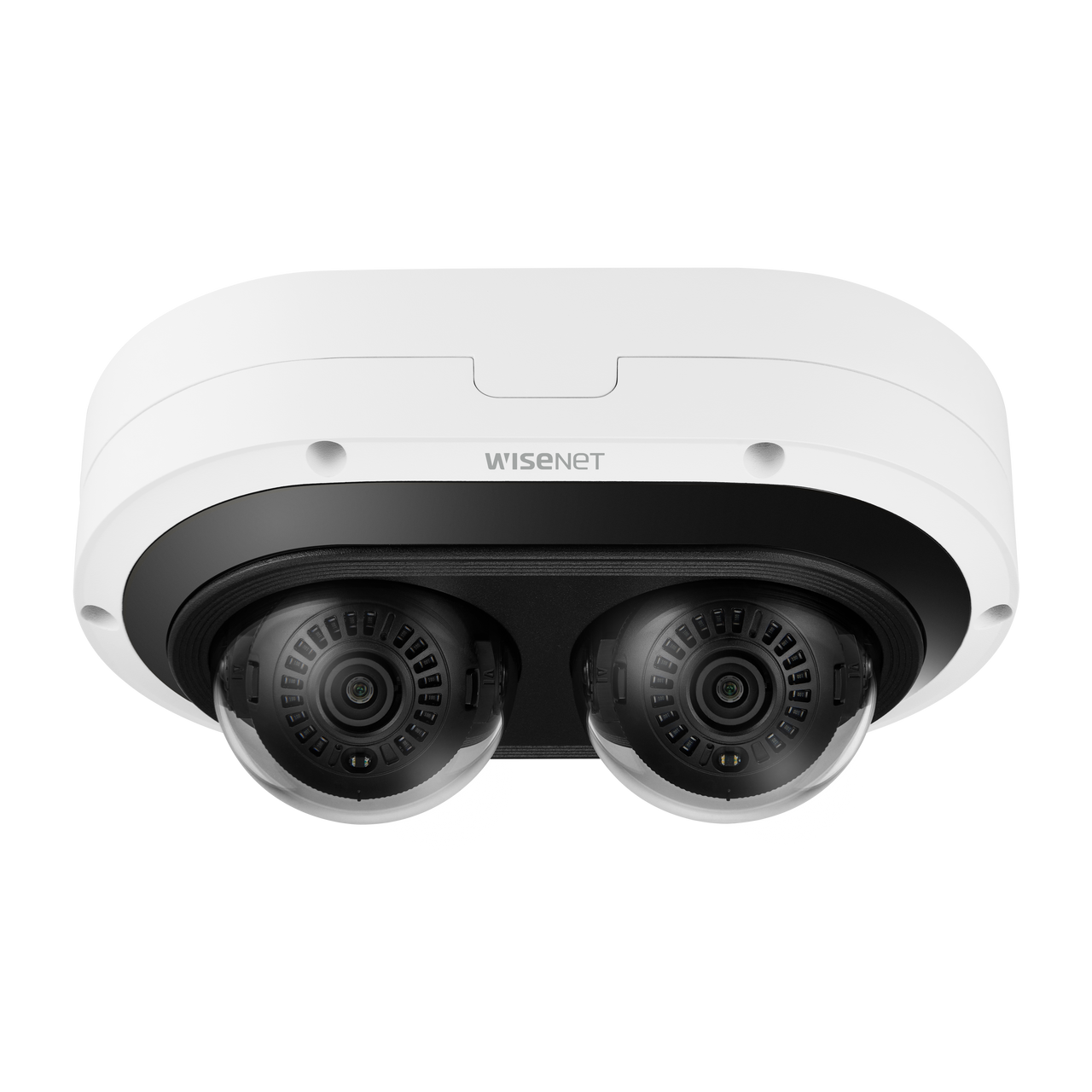

Hanwha PNM-C12083RVD 6MP X 2 AI, IR outdoor Dome
OVERVIEW
The PNM-C12083RVD is an outdoor vandal-rated network camera featuring 2 Channels, with AI & IR in a dome camera form factor. Featuring 6MP X 2 sensors, each at 15fps with a 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover. Analytics events based on AI engine: Object detection(Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events : Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Appear/Disappear. FIPS 140-2, micro SD card 512GB, P66, NEMA4X, IK10. Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble
| Video | |
| Imaging Device | 1/2.8" CMOS x 2CH |
| Resolution | 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: 6MP Max.15fps MJPEG: Max.15fps |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.16lux(F1.67, 1/30sec, 30IRE) BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on) |
| Video Out | USB: micro USB Type B, 1280x720 for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3.54~6.69mm motorized varifocal |
| Max. Aperture Ratio | F1.67(Wide)~F2.64(Tele) |
| Angular Field of View | H: 95.08˚(Wide)~47.64˚(Tele) V: 50.78˚(Wide)~26.7˚(Tele) D: 112.6˚(Wide)~54.74˚(Tele) |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed IRIS |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0~355°/0~78°/0~180° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 6ea, Quadrangle zones - Color : Gray, Black, White |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control(Based on AI engine) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) - Each channel separately |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support Bestshot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events* - Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) * Support Audio detection, Sound classification via optional SPM-4210 I/O box |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | * Support Alarm via optional SPM-4210 I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - * Alarm output via optional SPM-4210 I/O box |
| Audio Streaming | None |
| Audio In | * Audio in via optional SPM-4210 I/O box |
| Audio Out | * Audio out via optional SPM-4210 I/O box |
| IR Viewable Length | 25m(82ft) |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | None |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(10 users) / Multicast 5 profiles per channel |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| SIP support (VoIP, Peer-to-peer, SIP/PBX integration) | None |
| Security | TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot Max. 512GB |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at, Class4) |
| Power Consumption | PoE+: Max 21W, typical 16.5W |
| Mechanical | |
| Color / Material | White / Aluminum Hard-coated dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 1330g |
| Compatible Conduit hole / Gangbox | 3/4" (M25) single, double, 4" octagon, 4" square |
| Hanging Mount (Dome) | None |
| Skin Cover (Dome) | None |
| Weather Cap (Dome) | None |
| Power Module | None |
| Backbox | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 60.9m(199.82ft) / Tele: 150.8m(494.65ft) |
| Observe (63PPM/ 19PPF) | Wide: 24.4m(79.93ft) / Tele: 60.3m(197.86ft) |
| Recognize (125PPM/ 38PPF) | Wide: 12.2m(39.96ft) / Tele: 30.2m(98.93ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.1m(19.98ft) / Tele: 15.1m(49.46ft) |
Network vandal outdoor 2CH AI IR dome camera, (6MP X 2 sensors) 12MP @ 15fps, 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG), IR viewable length 25m (82ft), USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, Handover, Analytics events based on AI engine: Object detection(Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events : Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Appear/Disappear, FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10, Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble
