Hanwha / Samsung

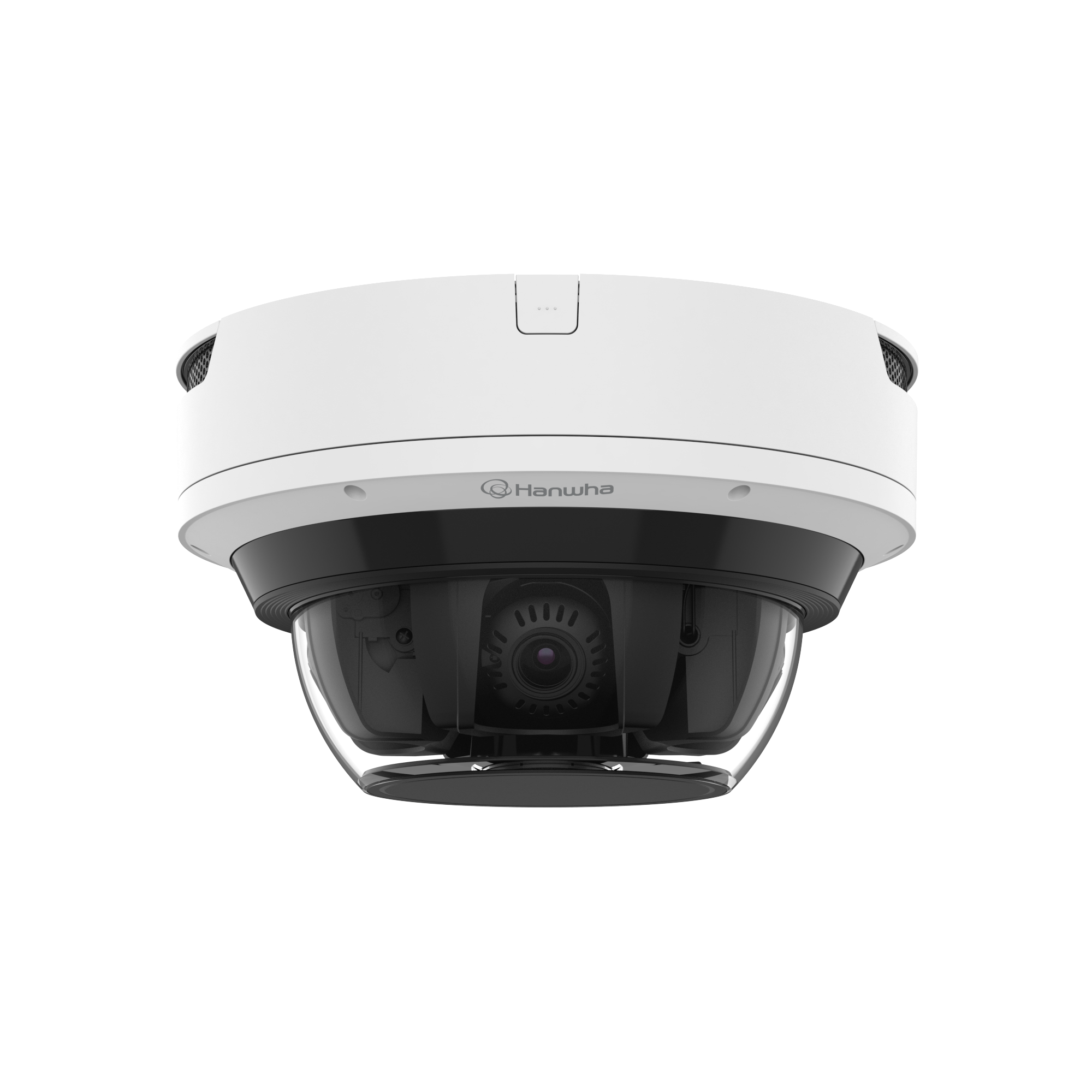

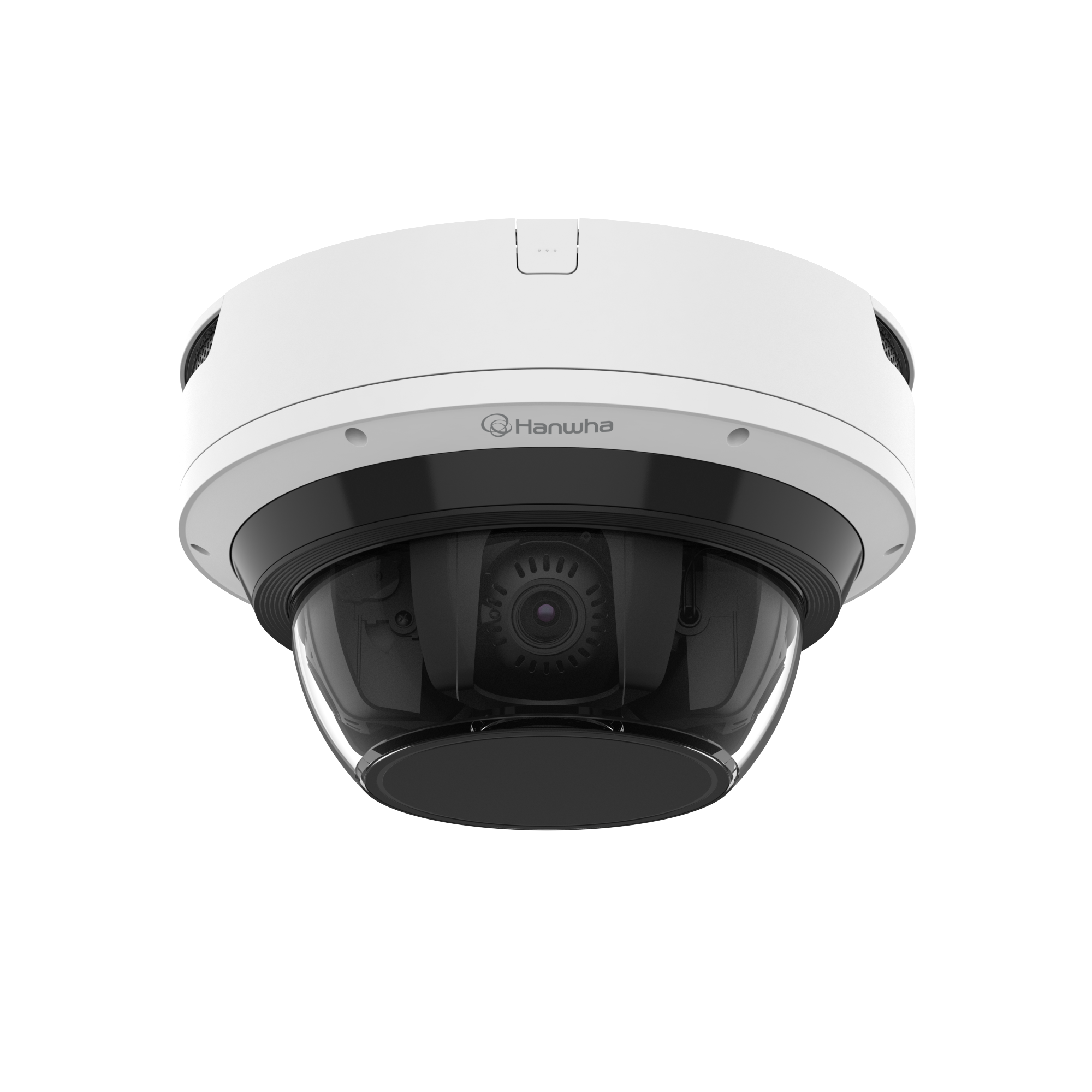

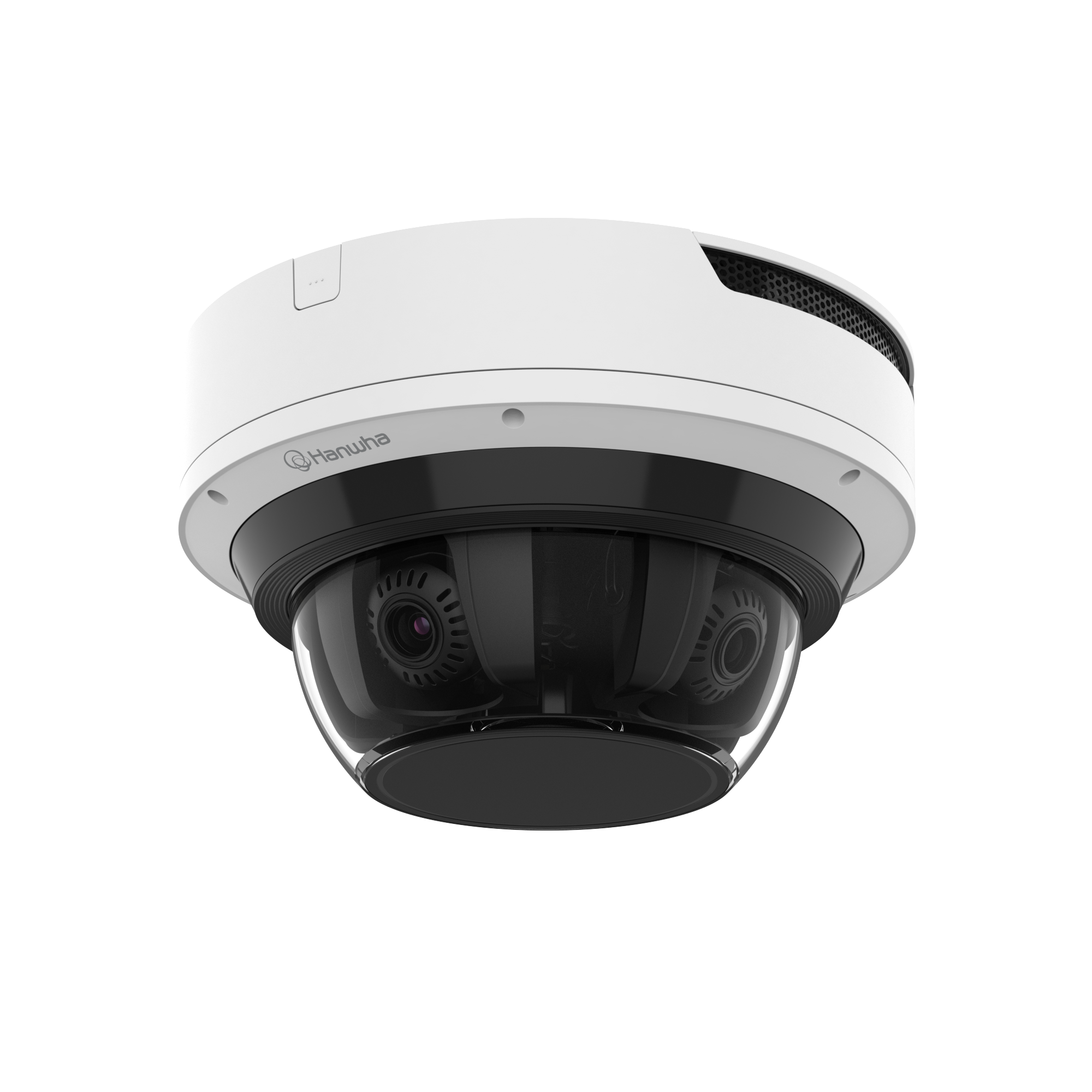

Hanwha PNM-C32084RQZ-8XE256G 4K AI, IR, PTRZ Multi-directional, Open Version with Jetson Orin 8GB (L)
Choose options
- Includes NVIDIA Jetson Orin NX 8GB up to 117 TOPS
- With 256GB SSD storage (Support additional M.2 SSD)
- Includes Jetpack 5.1 but supports 6.x and above.
- Base Camera Features:
- 4.38~9.33mm (2.13x) motorized varifocal lenses
- PTRZ (Pan, Tilt, Rotate, Zoom) control of each lens for easy installation and adjustment
- 4-channels x 8MP@20fps (AI Off, H.265/H.264) / 4-channels x 8MP@15fps (AI ON, H.265/H.264)
- WiseIR 25m (82.02ft) range
- Classified object type: Person/Face/Vehicle/License plate; Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color)
- BestShot image of detected objects
- Hanwha WiseAI Analytics events based on AI engine:
- Object detection
- Virtual line (Crossing/Direction)
- Virtual area (Loitering/Intrusion/Enter/Exit)
- Standard Analytics events:
- Defocus detection
- Motion detection
- Tampering
- Virtual area (Appear/Disappear)
- Audio detection, Sound classification (with optional Network I/O box SPM-4210)
- AI-based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
- Flip, Mirror, Hallway view (90°/270°) - each channel individually
- MQTT support
- microSD/SDHC/SDXC 2 slots: Maximum 1TB (2 × 512GB, not for WAVE storage)
- Tamper switch triggers if dome cover is removed
- Reinforced durability (IP66, IK10, NEMA4X), 150MPH wind load resistant, Metal shielded RJ-45
- HPoE (IEEE802.3bt type4, Class8), injector included
- Operating Temperature: -40°C~+55°C (-40°F~+131°F) / 0–100% RH (condensing), Humidity control with AIR vent; Start-up should be above -20°C
- Compatible conduit hole / gangbox 19.1mm (3/4") (M25): Single, double, 4" octagon, 4" square
Increase visibility. Reduce cost of ownership.
Hanwha Vision 4-Channel AI Multi-sensor Camera allows you to simultaneously monitor areas with 360° coverage and utilize AI object detection to reduce false alarms and trigger events. Save on installation costs, network runs, switch ports, and accessories to reduce the total cost of ownership of your surveillance system.
Powered by advanced analytics
Utilize Jetson performance and third-party AI apps from NVIDIA ecosystem to provide unmatched performance and accuracy for your security system. It also supports NVIDIA’s AI analytics platform, Deep Stream, and has integrated APIs, making adding applications from its ecosystem easy.
Remote field of view adjustment
Each motorized lens can be remotely adjusted for pan, tilt, rotation, and zoom, allowing for easy field of view setup during and after installation.
