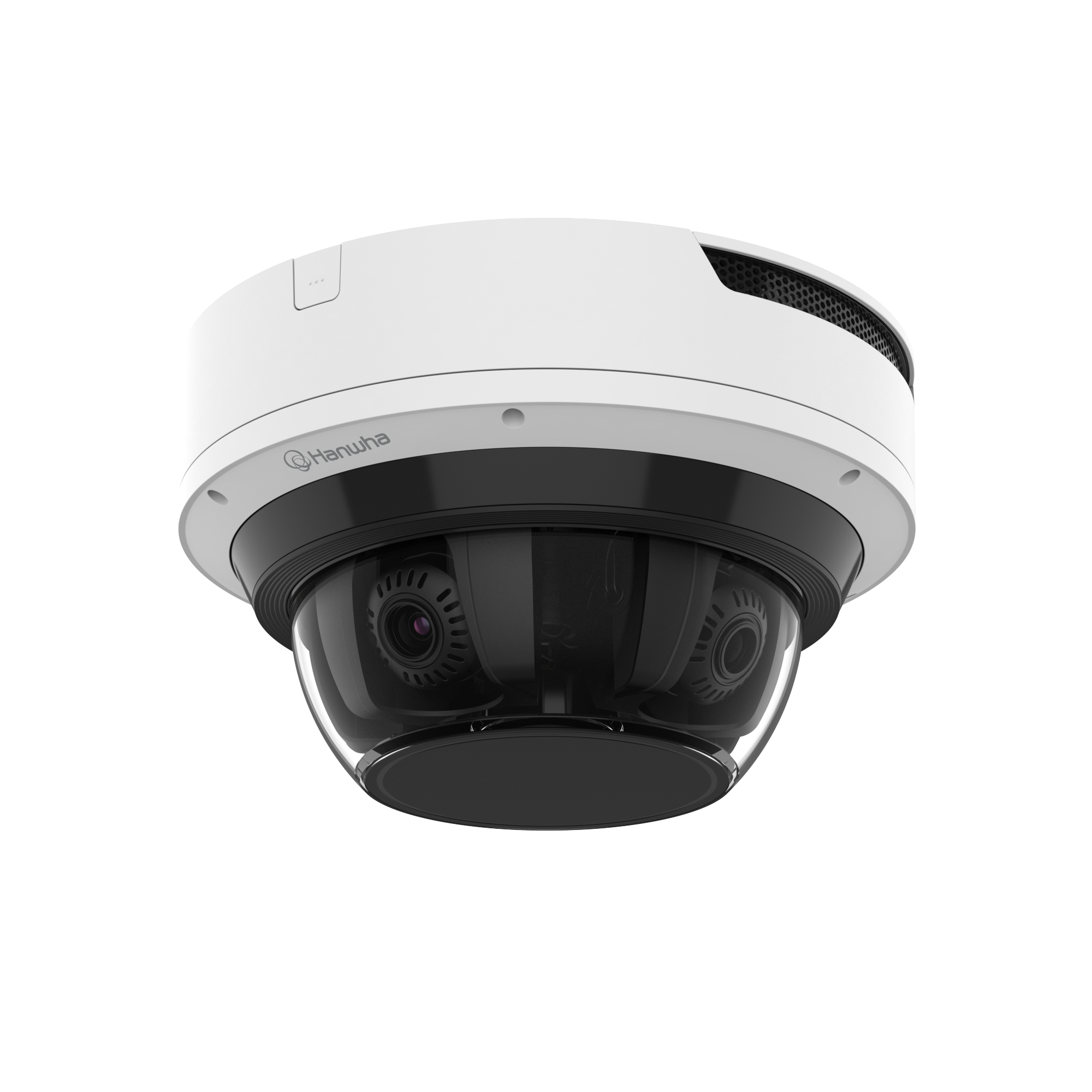

Hanwha PNM-C32084RQZ-8XE4T-W Multi-sensor SolidEDGE

The SolidEDGE multi-sensor camera from Hanwha Vision features a built-in WAVE VMS server powered by the NVIDIA Jetson™ platform.

• Capable of recording up to 16 video streams with the built-in NVIDIA Jetson Orin NX 8GB.  Video analytic partners can add additional analytical functions using the onboard GPU.
• Wisenet WAVE VMS embedded with 4TB storage (2 x 2TB NVMe SSDs)
  • Includes 1x WAVE Professional Recording License
• Wisenet WAVE AI Plugin pre-installed, adds AI analytics to non-AI cameras
  • Includes 30-day free trial for up to 4 video streams

  Base Camera Features:

• 4.38~9.33mm (2.13x) motorized varifocal lenses
• PTRZ (Pan, Tilt, Rotate, Zoom) control of each lens for easy installation and adjustment
• 4-channels x 8MP@20fps (AI Off, H.265/H.264) / 4-channels x 8MP@15fps(AI ON, H.265/H.264)
• WiseIR 25m (82.02ft) range
• Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle, Color), Person (clothing color)
• BestShot image of detected objects
• Analytics events based on AI engine: - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
• Standard Analytics events: - Defocus detection, Motion detection, Tampering, Virtual area (Appear/Disappear) - Audio detection, Sound classification (with optional Network I/O box SPM-4210)
• AI-based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• Flip, Mirror, Hallway view(90°/270°) - each channel individually
• MQTT support
• microSD/SDHC/SDXC 2 slots: Maximum 1TB (2 x 512GB, not for WAVE storage)
• Next-level cybersecurity (TPM 2.0 with FIPS 140-2 level 2)
• Tamper switch triggers in case dome cover is removed
• Reinforced durability (IP66, IK10, NEMA4X), 150MPH Wind load resistant, Metal shielded RJ-45
• HPoE (IEEE802.3bt type4, Class8), injector included
• Operating Temperature: -40°C~+55°C(-40°F~+131°F) / 0~100% RH (condensing), Humidity control /w AIR vent * Start-up should be done at above -20°C
• Compatible Conduit hole / Gangbox 19.1mm(3/4")(M25): Single, double, 4" octagon, 4" square
