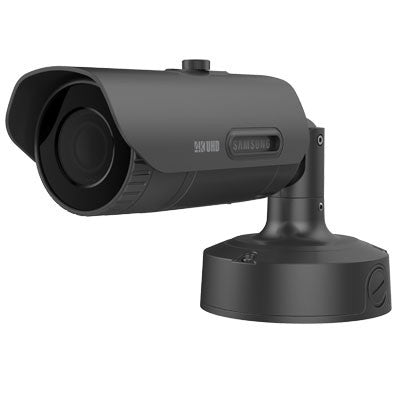

Hanwha PNO-9080R 12MP 4K Outdoor IR Bullet Camera

Hanwha PNO-9080R Features

• Max Resolution: 4168 x 3062
• Image Sensor: 1/1.7" 12.4M Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3Lux (1/30sec, F1.6, 30IRE), 0.01Lux (2sec, F1.6, 30IRE); B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 40m (131.23ft)
• Lens Type: Board-in type
• Focal Length: 4.5 ~ 10mm / F1.6
• Zoom: 2.2x motorized varifocal
• Iris: P-Iris mode
• Focus: Simple focus / Manual, Remote control via network (Manual, Simple focus, Day & Night)
• Field of View: [4096 x 2160] H : 100.3˚(Wide) ~ 45.6˚(Tele) / V : 49.7˚(Wide) ~ 24.0˚(Tele); [3840 x 2160] H : 92.3˚(Wide) ~ 42.6˚(Tele) / V : 49.7˚(Wide) ~ 24.0˚(Tele)
• Compression Styles: H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Frame Rate: H.265 / H.264 : 20fps@4000 x 3000, 30fps@4096 x 2160 MJPEG : 2fps@4000 x 3000 ~ 2592 x 1464, 15fps@1920 x 1080 ~ 320 x 240
• WDR Technology: Yes, 120 dB
• Image Settings: Day & Night, Backlight Compensation, Wide Dynamic Range 120dB, Contrast Enhancement, Digital Noise Reduction SSNR, Defog, Motion Detection; Privacy Masking, Gain Control; White Balance; Electronic Shutter Speed, Flip / Mirror
• Intelligent Video Analytics: Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Defocus detection, Digital auto tracking - with metadata
• Built-in Microphone: No
• Audio Capabilities: Audio In Selectable (Mic in / Line in), Audio Out Line out (3.5mm mono jack),
• Alarm/Event Management: Alarm input, Motion detection, Video analytics, Audio detection, Network disconnect; File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 20 users at unicast mode
• On-board Storage: Yes, Micro SD/SDHC/SDXC up to 128GB
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 Weather Proof & IK10 Vandal proof
• Dimensions: 82.4 x 87.0 x 348.3mm (3.24" x 3.43" x 13.71") (Without sunshield)
• Weight: 1.4Kg (3.09 lb)
• Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: 24V AC, 12V DC, PoE (IEEE802.3af, Class3) / 12V DC : Max. 11.55W, PoE : Max.12.95W, 24V AC (50/60Hz) : 14.08W - Heater on; 12V DC : Max. 10.45W, PoE : Max.11.77W, 24V AC (50/60Hz) : 12.43W - Heater off
• Warranty: 3 Years

Hanwha/Hanwha PNO-9080R Overview

The PNO-9080R from Hanwha's Wisenet P Series Performance IP camera line is a 4K, 12MP outdoor bullet featuring Hanwha's WiseStream technology, triple codec H.265/H.264/MJPEG, motorized vari-focal 4.5~10mm lens, True D/N, True WDR (120dB), IR (40m), edge analytics, SD card slot (SD/SDHC/SDXC up to 128GB), digital auto tracking, Hallway view, IK10/IP66, supports PTZ handover function.
