Hanwha PWR-12DC-16-10 16 Camera 12VDC 10Amp Power Supply

Hanwha PWR-12DC-16-10 Features

• Input: 115VAC 50/60 HZ; 5.4 Amps
• Output: 3 Amps - 10 Amps 225VA supply currents at 70°F
• Fuse: 10 Amps - Sixteen 24VDC individually fused outputs
• Enclosure Dimensions: 393.7 x 330.2 x 114.3mm (15.5” x 13” x 4.5”)
• Convenient screw and terminal and fuse access
• Built-in battery charger
• Power ON/OFF switch
• Individual LED’s for each fused output
• AC power LED indicator
• Double coated polyurethane finish
• Multiple knockouts to accommodate various wiring configurations
• Uses easy to find automotive style fuses
• Includes transformer and spare fuses
• Lockable heavy gauge metal enclosure

Hanwha PWR-12DC-16-10 Overview

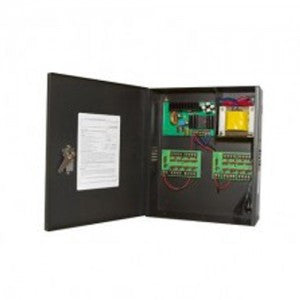

The Hanwha/Hanwha PWR-12DC-16-10 is a CCTV power center engineered to manage remote camera and accessory power requirements. This distribution module is designed with 16 individually fused outputs for powering up to 16 CCTV cameras and accessories. It will provide 12 VDC via distribution to sixteen fused outputs with a total of 10 Amps continuous supply current. The PWR-12DC-16-10 power center is housed in the premium lockable heavy gauge metal enclosure.
