Hanwha PWR-12DC-16-5 12VDC 5 Amp Power Supply

Hanwha PWR-12DC-16-5 Features

• Input: 115VAC 50/60 HZ; 1.1 Amps
• Output: 3 Amps - 5 Amps 100VA supply currents at 70°F
• Fuse: 5 Amps - Sixteen 12VDC individually fused outputs
• Enclosure Dimensions: 254 x 228.6 x 114.3mm (10™ x 9™ x 4.5™)
• Convenient screw and terminal and fuse access
• Built-in battery charger
• Power ON/OFF switch
• Individual LED’s for each fused output
• AC power LED indicator
• Double coated polyurethane finish
• Multiple knockouts to accommodate various wiring configurations
• Uses easy to find automotive style fuses
• Includes transformer and spare fuses
• Lockable heavy gauge metal enclosure

Hanwha PWR-12DC-16-5 Overview

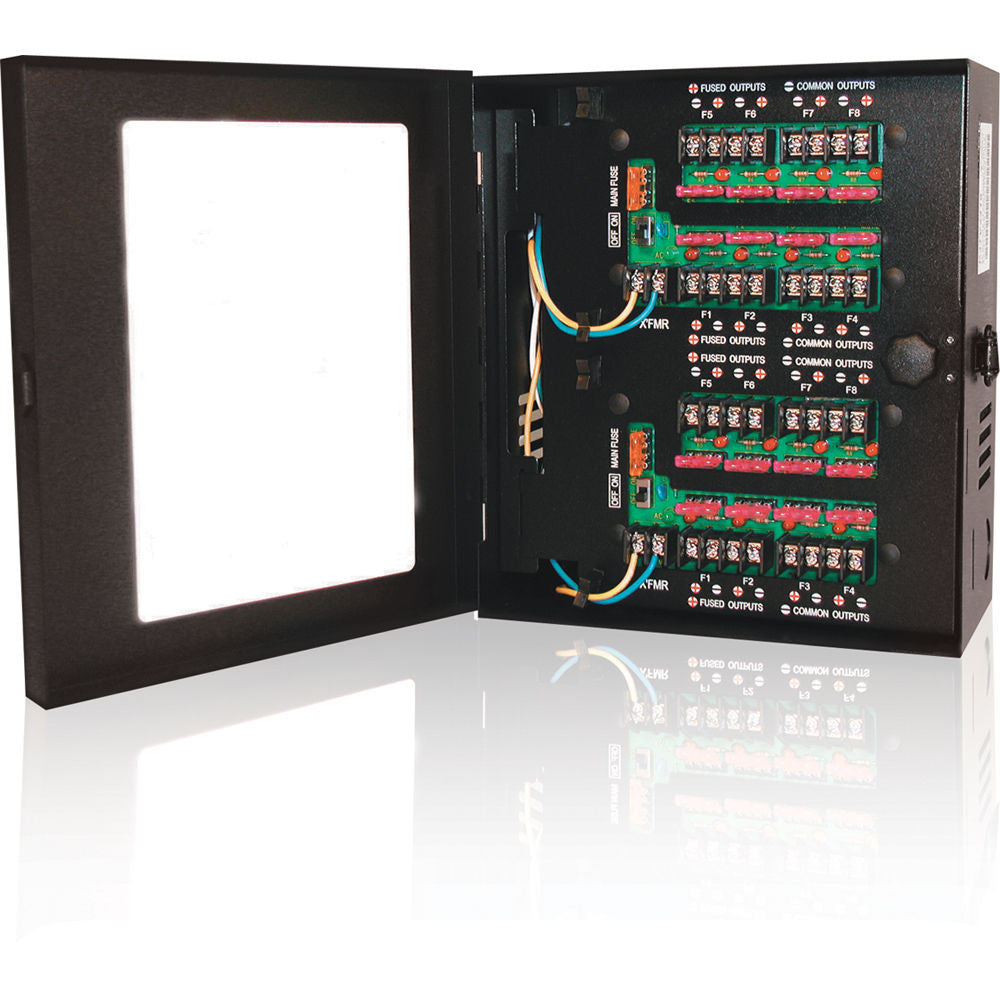

The Hanwha/Hanwha PWR-12DC-16-5 CCTV Camera 12VDC 5A Power Supply is engineered to power remote cameras and accessories. This distribution module features 16 individually fused outputs for powering up to 16 CCTV cameras and accessories. It provides 12VDC via distribution to 16 fused outputs with a total of 5A continuous supply current. This power supply is housed in a premium lockable heavy-gauge metal enclosure.
