Hanwha PWR-24AC-1-3-ULW 1-Camera 24VAC, 3A Power Supply

Hanwha PWR-24AC-1-3-ULW Features

• Input: 115VAC 50/60 HZ; 0.9 Amps
• Output: One 24VAC individually fused - 3 Amps 100 VA supply current at 70°F
• Fuse: 5 Amps
• Enclosure Dimensions: 203.2 x 152.4 x 114.3mm (8” x 6” x 4.5”)
• Convenient screw and terminal and fuse access
• AC power LED indicator
• Includes transformer and spare fuses
• Lightweight molded fiberglass NEMA 4X weatherproof enclosure
• Uses easy-to-find automotive-style fuses
• Maintains camera synchronization
• UL listed

Hanwha PWR-24AC-1-3-ULW Overview

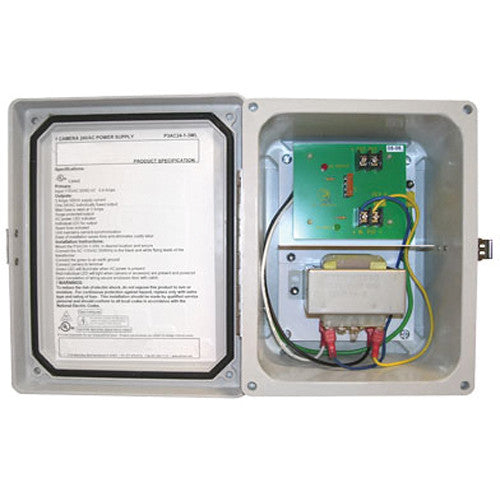

The Hanwha/Hanwha PWR-24AC-1-3-ULW is a CCTV power center engineered to manage remote camera and accessory power requirements in a NEMA 4X weatherproof enclosure. The PWR-24AC-1-3-ULW distribution module is designed with 1 individually fused output for powering up to 1 CCTV camera or accessory. It will provide 24Volts AC via distribution to one fused output with a total of 3.0 Amps continuous supply current.
