Hanwha PWR-24AC-16-14 Features
- Input: 115VAC 50/60 HZ; 2.7 Amps
- Output: fuses are rated at 15 Amps - Sixteen 24VAC individually fused outputs
- Fuse: 15 Amps - 4 Amps 100 VA supply current at 70°F
- Transformer: (2) 110/24VA, 175VA
- Enclosure Dimensions: 254 x 228.6 x 114.3mm (10” x 9” x 4.5”)
- UL listed
- Convenient screw and terminal and fuse access
- Separation panel between transformers and output access
- Power ON/OFF switch
- Individual LED’s for each fused output
- Lockable heavy gauge metal enclosure
- Double coated polyurethane finish
- Multiple knockouts to accommodate various wiring configurations
- Uses easy to find automotive style fuses
- Includes transformer and spare fuses
Hanwha PWR-24AC-16-14 Overview

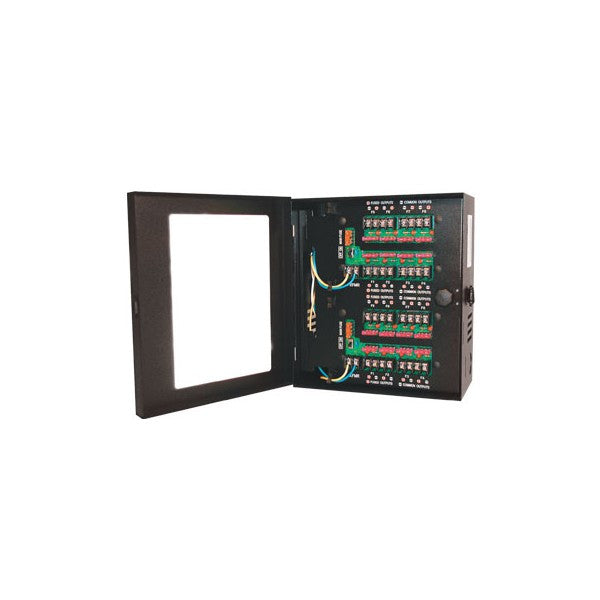

The Hanwha PWR-24AC-16-14 16-Camera 24VAC 14.5A Power Supply is a CCTV power center engineered to manage/remote camera and accessory power requirements. This distribution module is designed with sixteen individually-fused outputs for powering up to sixteen CCTV cameras and accessories. It provides 24VAC via distribution to sixteen fused outputs with a total of 14.5A continuous supply current. It is housed in a lockable heavy-gauge metal enclosure.
