Hanwha PWR-24AC-16-8UL Features
- Input: 115VAC 50/60 HZ; 1.8 Amps
- Output: fuses are rated at 5 Amps - Sixteen 24VAC individually fused outputs
- Fuse: 5 Amps - 4 Amps 100 VA supply current at 70°F
- Transformer: Two (2) 110VAC/24VAC, 100VA
- Enclosure Dimensions: 254 x 228.6 x 114.3mm (10” x 9” x 4.5”)
- UL listed
- Convenient screw and terminal and fuse access
- Separation panel between transformers and output access
- Power ON/OFF switch
- Individual LED’s for each fused output
- Lockable heavy gauge metal enclosure
- Double coated polyurethane finish
- Multiple knockouts to accommodate various wiring configurations
- Uses easy to find automotive style fuses
- Includes transformer and spare fuses

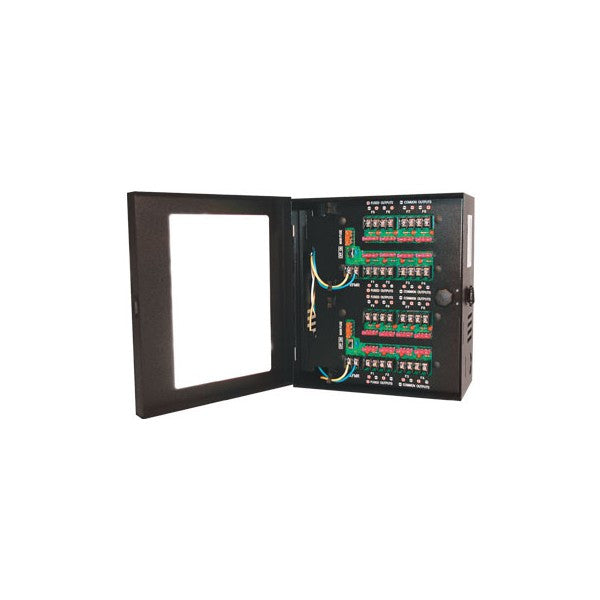

Hanwha PWR-24AC-16-8UL Overview
The PWR-24AC-16-8UL is a UL listed CCTV power center engineered to manage remote camera and accessory power requirements. The PWR-24AC-16-8UL distribution module is designed with 16 individually fused outputs for powering up to 16 CCTV cameras and accessories. It will provide 24Volts AC to sixteen fused outputs with a total of 8.0 Amps continuous supply current via two 4.0 Amp supplies. The PWR-24AC-16-8UL power center is housed in a premium heavy gauge metal enclosure.
