Hanwha PWR-24AC-8-7 8-Camera 24VAC 7.25A Power Supply

Hanwha PWR-24AC-8-7 Features

• Input: 115VAC 50/60 HZ; 1.75 Amps
• Output: fuses are rated at 10 Amps - Eight 24VAC individually fused outputs
• Fuse: 5 Amps - 4 Amps 100 VA supply current at 70°F
• Transformer: 110/24VAC, 175VA
• Enclosure Dimensions: 254 x 228.6 x 114.3mm (10” x 9” x 4.5”)
• UL listed
• Convenient screw and terminal and fuse access
• Separation panel between transformers and output access
• Power ON/OFF switch
• Individual LED’s for each fused output
• Lockable heavy gauge metal enclosure
• Double coated polyurethane finish
• Multiple knockouts to accommodate various wiring configurations
• Uses easy to find automotive style fuses
• Includes transformer and spare fuses

Hanwha PWR-24AC-8-7 Overview

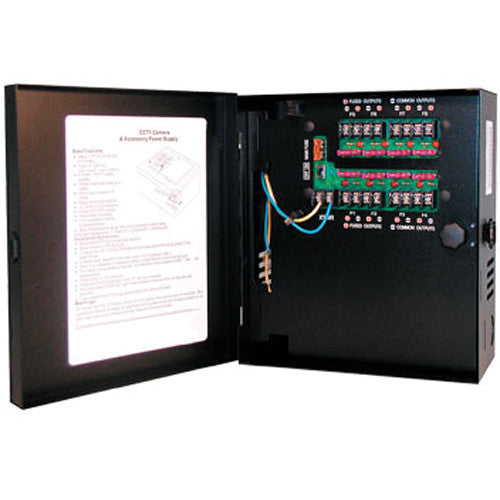

The Hanwha PWR-24AC-8-7 8-Camera 24VAC 7.25A Power Supply is a CCTV power center engineered to manage/remote camera and accessory power requirements. This distribution module is designed with eight individually-fused outputs for powering up to eight CCTV cameras and accessories. It provides 24VAC via distribution to eight fused outputs with a total of 7.25A continuous supply current. It is housed in a lockable heavy-gauge metal enclosure.
