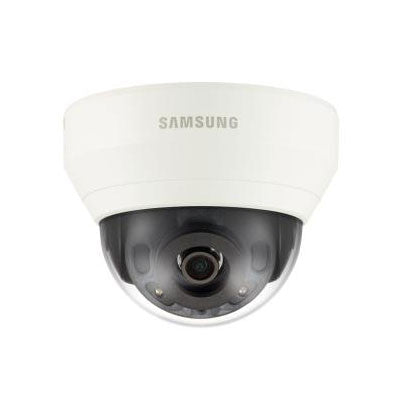

Hanwha QND-7020R 4MP IR Indoor Dome Network Camera

Hanwha QND-7020R Features

• Max Resolution: 2592 x 1520
• Image Sensor: 1/3" 4M Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.4Lux; B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 20m (65.62ft)
• Lens Type: Board type
• Focal Length: 3.6mm fixed / F2.2
• Zoom: N/A
• Iris: N/A
• Focus: Simple focus / Manual
• Field of View: H: 81.0˚ / V: 45.0˚ / D: 95.0˚
• Compression Styles: H.265, H.264, MJPEG
• Frame Rate: H.265/H.264 : Max. 20fps at 4M, Max. 30fps at under 2M; MJPEG : Max. 15fps
• WDR Technology: Yes, 120 dB
• Image Settings: Day & Night, Backlight Compensation, Digital Noise Reduction SSNR, Motion Detection, Privacy Masking, Gain Control; White Balance; Electronic Shutter Speed, Flip / Mirror, Lens Distortion Correction
• Intelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detection
• Built-in Microphone: Yes
• Audio Capabilities: Uni-directional via built-in mic
• Alarm/Event Management: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 6 users at unicast mode
• On-board Storage: microSD/SDHC/SDXC up to 128GB
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IK08 Vandal resistant
• Dimensions: Ø110.0 x 86.0mm (Ø4.33" x 3.39")
• Weight: 290g (0.64 lb)
• Operating Temperature: y -10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: PoE (IEEE802.3af, Class3) & 12V DC / Max. 6.5W (PoE), Max. 5.43W (12V DC)
• Warranty: 3 Years

Hanwha/Hanwha QND-7020R Overview

The QND-7020R from Hanwha's Q Series affordable network camera line is a 4MP indoor dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 3.6mm lens, IR, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
