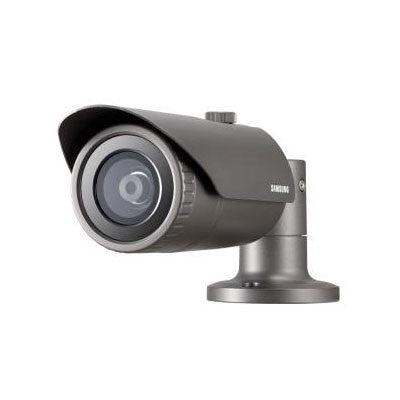

Hanwha QNO-6010R 2MP Outdoor IR Bullet Camera

Replaced by the QNO-6012R

Hanwha QNO-6010R Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.9" 2.19M Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.15Lux, B/W: 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 20m (65.62ft) : QNO-6010R, 25m (82.02ft) : QNO-6020R, 30m (98.43ft) : QNO-6030R
• Lens Type: Board type
• Focal Length: 2.8mm fixed (QNO-6010R), 3.6mm fixed (QNO-6020R), 6mm fixed (QNO-6030R) / F2.0 (QNO-6010R), F1.8 (QNO-6020R/6030R)
• Zoom: N/A
• Iris: N/A
• Focus: Simple focus / Manual
• Field of View: H: 116.0˚ / V: 62.0˚ / D: 137.0˚ (QNO-6010R); H: 86.48˚ / V: 46.22˚ / D: 102.44˚ (QNO-6020R); H: 52.54˚ / V: 28.86˚ / D: 61.14˚ (QNO-6030R)
• Compression Styles: H.265, H.264, MJPEG
• Frame Rate: H.265/H.264: Max. 20fps at 4M, Max. 30fps at under 2M; MJPEG: Max. 15fps
• WDR Technology: Yes, 120 dB
• Image Settings: Day & Night, Backlight Compensation, Digital Noise Reduction SSNR, Motion Detection; Privacy Masking, Gain Control; White Balance; Electronic Shutter Speed, Flip / Mirror, Lens Distortion Correction
• Intelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detection
• Built-in Microphone: No
• Audio Capabilities: Uni-directional via Audio Line In
• Alarm/Event Management: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 6 users at unicast mode
• On-board Storage: Yes, microSD/SDHC/SDXC up to 128GB
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 Weather Proof & IK10 Vandal proof
• Dimensions: Ø70.0 x 246.0mm (Ø2.76" x 9.69") (Without sunshield)
• Weight: 730g (1.61 lb)
• Operating Temperature: 30°C ~ +55°C (-22°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: PoE (IEEE802.3af, Class3) & 12V DC / Max. 7W (PoE), Max. 6W (12V DC)
• Warranty: 3 Years

Hanwha QNO-6010R Overview

The QNO-6010R from Hanwha's Q Series affordable network camera line is a 2MP bullet network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
