Hanwha / Samsung

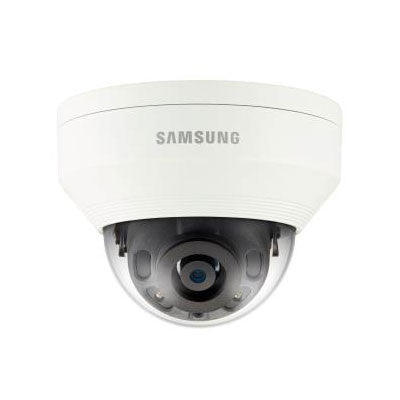

Hanwha QNV-6010R 2MP IR Dome Network Camera
Replaced by the QNV-6012R
Hanwha QNV-6010R Features
- Max Resolution: 1920 x 1080
- Image Sensor: 1/2.9" 2.19M Progressive CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color : 0.015Lux (30IRE), B/W : 0Lux (IR LED on)
- IR Illuminators: Yes
- IR Illuminator Range: 20m (65.62ft)
- Lens Type: Board type
- Focal Length: 2.8mm fixed / F1.8
- Zoom: N/A
- Iris: N/A
- Focus: Manual
- Field of View: H: 110.0˚ / V: 61.0˚ / D: 125.0˚
- Compression Styles: H.265, H.264, MJPEG
- Frame Rate: H.265/H.264 : Max. 30fps at all resolutions, MJPEG : Max. 15fps
- WDR Technology: Yes, 120 dB
- Image Settings: Day & Night, Backlight Compensation, Digital Noise Reduction SSNR, Motion Detection, Privacy Masking, Gain Control; White Balance; Electronic Shutter Speed, Flip / Mirror, Lens Distortion Correction
- Intelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detection
- Built-in Microphone: Yes
- Audio Capabilities: Uni-directional via built-in mic
- Alarm/Event Management: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
- Users: 6 users at unicast mode
- On-board Storage: microSD/SDHC/SDXC up to 128GB
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: Ø120.3 x 91.7mm (Ø4.74" x 3.61")
- Weight: 490g (1.08 lb)
- Operating Temperature: -30°C ~ +55°C (-22°F ~ +131°F)
- Operating Humidity: Less than 90% RH
- Power/Consumption: PoE (IEEE802.3af, Class3) & 12V DC / Max. 7W (PoE), Max. 5.8W (12V DC)
- Warranty: 3 Years
Hanwha/Hanwha QNV-6010R Overview
The QNV-6010R from Hanwha's Q Series affordable network camera line is a 2MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
