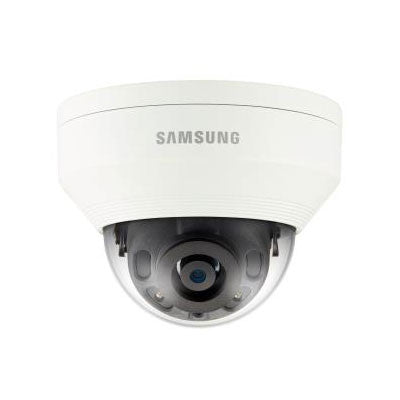

Hanwha QNV-6020R 2MP IR Dome Network Camera

Replaced by the QNV-6022R

Hanwha QNV-6020R Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.9" 2.19M Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.015Lux (30IRE), B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 20m (65.62ft)
• Lens Type: Board type
• Focal Length: 3.6mm fixed / F1.8
• Zoom: N/A
• Iris: N/A
• Focus: Manual
• Field of View: H: 86.48˚ / V: 46.22˚ / D: 102.44˚
• Compression Styles: H.265, H.264, MJPEG
• Frame Rate: H.265/H.264 : Max. 30fps at all resolutions, MJPEG : Max. 15fps
• WDR Technology: Yes, 120 dB
• Image Settings: Day & Night, Backlight Compensation, Digital Noise Reduction SSNR, Motion Detection, Privacy Masking, Gain Control; White Balance; Electronic Shutter Speed, Flip / Mirror, Lens Distortion Correction
• Intelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detection
• Built-in Microphone: Yes
• Audio Capabilities: Uni-directional via built-in mic
• Alarm/Event Management: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 6 users at unicast mode
• On-board Storage: microSD/SDHC/SDXC up to 128GB
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø120.3 x 91.7mm (Ø4.74" x 3.61")
• Weight: 490g (1.08 lb)
• Operating Temperature: -30°C ~ +55°C (-22°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: PoE (IEEE802.3af, Class3) & 12V DC / Max. 6.8W (PoE), Max. 5.7W (12V DC)
• Warranty: 3 Years

Hanwha QNV-6020R Overview

The QNV-6020R from Hanwha's Q Series affordable network camera line is a 2MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 3.6mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
