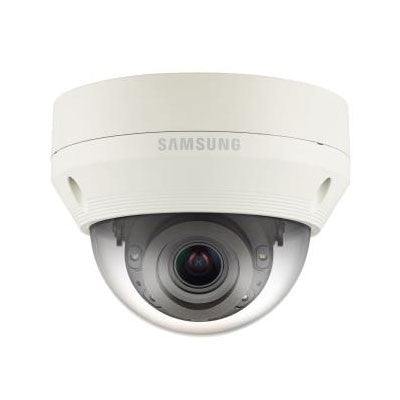

Hanwha QNV-6070R 2MP IR Dome Network Camera

Replaced by the QNV-6082R

Hanwha QNV-6070R Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.9" 2.19M Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.095Lux (30IRE), B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 30m (98.43ft)
• Lens Type: Board type
• Focal Length: 2.8 ~ 12mm / F1.4
• Zoom: 4.3x manual varifocal
• Iris: DC auto iris
• Focus: Manual
• Field of View: H: 103.8˚ ~ 32.4˚ / V: 53.7˚ ~ 18.4˚ / D: 121.9˚ ~ 37.1˚
• Compression Styles: H.265, H.264, MJPEG
• Frame Rate: H.265/H.264 : Max. 30fps at all resolutions, MJPEG : Max. 15fps
• WDR Technology: Yes, 120 dB
• Image Settings: Day & Night, Backlight Compensation, Digital Noise Reduction SSNR, Motion Detection, Privacy Masking, Gain Control; White Balance; Electronic Shutter Speed, Flip / Mirror, Lens Distortion Correction
• Intelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detection
• Built-in Microphone: Yes
• Audio Capabilities: Uni-directional via Audio Line In
• Alarm/Event Management: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 6 users at unicast mode
• On-board Storage: microSD/SDHC/SDXC up to 128GB
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: IP66 & IK10
• Dimensions: Ø137.0 x 106.1mm (Ø5.39" x 4.18")
• Weight: 660g (1.46 lb)
• Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: PoE (IEEE802.3af, Class3) & 12V DC / Max. 6.7W (PoE), Max. 5.5W (12V DC)
• Warranty: 3 Years

Hanwha QNV-6070R Overview

The QNV-6070R from Hanwha's Q Series affordable network camera line is a 2MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8 ~ 12.0mm manual varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
