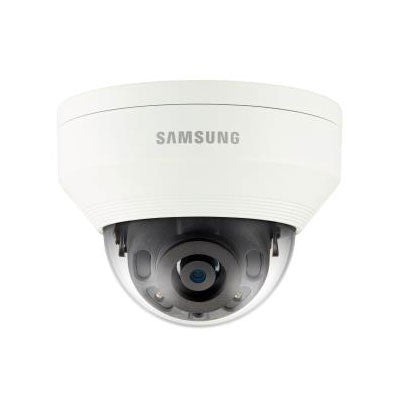

Hanwha QNV-7030R 4MP IR Dome Network Camera

Hanwha QNV-7030R Features

• Max Resolution: 2592 x 1520
• Image Sensor: 1/3" 4M Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color: 0.3Lux (QNV-7030R) B/W: 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 30m (98.43ft)
• Lens Type: Board type
• Focal Length: 6mm fixed / F2.2
• Zoom: N/A
• Iris: N/A
• Focus: Simple focus / Manual
• Field of View: H: 53.0˚ / V: 31.0˚ / D: 62.0˚
• Compression Styles: H.265, H.264, MJPEG
• Frame Rate: H.265/H.264 : Max. 20fps at 4M, Max. 30fps at under 2M; MJPEG: Max. 15fps
• WDR Technology: Yes, 120 dB
• Image Settings: Day & Night, Backlight Compensation, Digital Noise Reduction SSNR, Motion Detection; Privacy Masking, Gain Control; White Balance; Electronic Shutter Speed, Flip / Mirror; Lens Distortion Correction
• Intelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detection
• Built-in Microphone: No
• Audio Capabilities: Uni-directional via Audio Line In
• Alarm/Event Management: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 6 users at unicast mode
• On-board Storage: Yes, microSD/SDHC/SDXC up to 128GB
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP67 Weather Proof & IK10 Vandal proof
• Dimensions: Ø120.3 x 91.7mm (Ø4.74" x 3.61")
• Weight: 490g (1.08 lb)
• Operating Temperature: -30°C ~ +55°C (-22°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: PoE (IEEE802.3af, Class3) & 12V DC / Max. 6.8W (PoE), Max. 5.7W (12V DC)
• Warranty: 3 Years

Hanwha/Hanwha QNV-7010R Overview

The QNV-7010R from Hanwha's Q Series affordable network camera line is a 4MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
