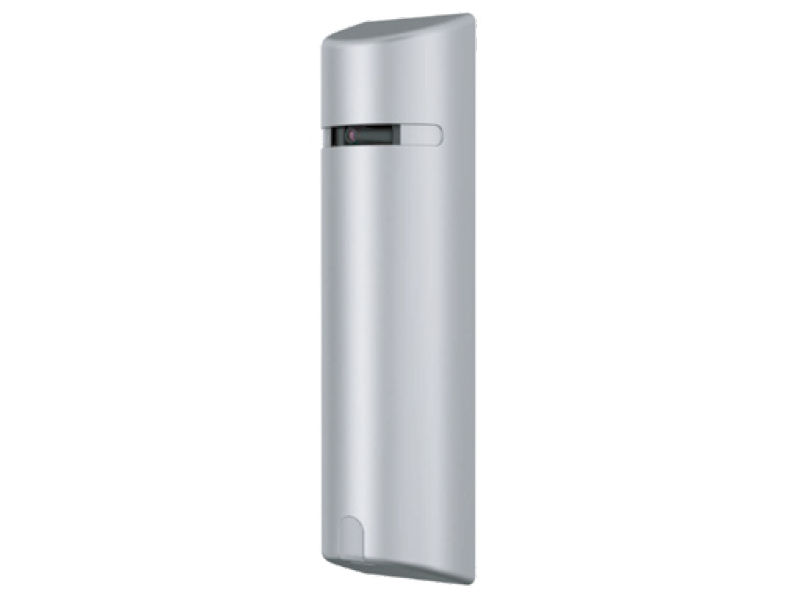

Hanwha SLA-T4680DS 2MP Door Jamb Lens Module for the XNB-6001

Features

VIDEO

• Imaging Device 1/2.8" 2M CMOS
• Total Pixels 1,945(H) x 1,109(V) 2.16M
• Effective Pixels 1,945(H) x 1,097(V) 2.13M
• Scanning System Progressive Scan
• Min. Illumination Color : 0.06Lux (F2.5), B/W: 0.06Lux (F2.5)
• S / N Ratio 50dB
• Wide Dynamic Range 120dB
• Day & Night Electrical

LENS

• Focal Length (Zoom Ratio) 4.6mm
• Max. Aperture F2.5
• Angular Field of H : 73° / V : 39° / D : 85°
• Min. Object Distance 0.98ft (0.3m)
• Lens Type Pinhole
• Mount Type RJ12 connected with main unit

ENVIRONMENTAL

• Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) /Less than 90% RH

MECHANICAL

• Lens Black / Plastic
• Cable Black
• Housing Silver
• Dimensions (WxHxD) Lens Ø0.94" x 1.65" (Ø24 x 42mm), Cable 314.96" (8m)
• Weight 0.68 lb (310g)

Please note: This Lens Module must be connected to the XNB-6001 Main Module to function, it is not a stand-alone camera.
