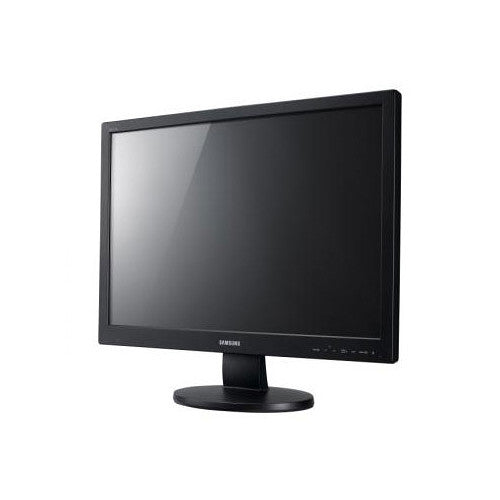

Hanwha SMT-2233 22" LED Monitor

Hanwha SMT-2233 Features

• Type: LED
• Screen Size: 27"
• Max. Resolution: 1,920 x 1,080
• Brightness: 250cd/m2
• Contrast Ratio: 1,000 : 1
• Aspect Ratio: 16 : 9
• Viewing Angle (H/V): 170° / 160°
• Display Color: 16.7million
• Response Time: 5ms
• Video System: NTSC / PAL
• Panel Life: 30,000hours
• Video Connector: BNC type (2 in / 2 out)
• Connector: 1 Analog RGB 15-pin D-sub
• Input Signal: 0.7Vpp ±5%
• Available Format: 720 x 400@70Hz 640 x 480@60Hz/72Hz/75Hz (VGA) 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA) 1,024 x 768@60Hz/70Hz/75Hz (XGA) 1,152 x 864@75Hz 1,280 x 960@60Hz 1,280 x 1,024@60Hz/75Hz (SXGA) 1,280 x 720@60Hz 1,600 x 1,200@60Hz/70Hz 1,920 x 1,080@50Hz/60Hz
• Connector: 1 HDMI input (Type A connector)
• Available Format: 640 x 480p@60Hz, 720 x 480i@60Hz, 720 x 480p@60Hz 720 x 576i@50Hz, 720 x 576p@50Hz, 1,280 x 720p@50Hz/60Hz 1,920 x 1,080i@50Hz/60Hz, 1,920 x 1,080p@50Hz/60Hz
• Audio Connector: 2 RCA type (2 stereo inputs)
• Speaker: 2 x 1W
• Application Support: Remote controller
• Language: English, Spanish, French, German, Italian, Portuguese, Russian, Swedish, Turkish, Thai, Chinese, Japanese, Korean, Dutch, Danish, Arabic
• Input Voltage: 100 ~ 240V AC (50/60Hz
• Power Consumption: Max. 24W
• Operating Temperature: 0 ~ +40°C (+32°F ~ +104°F)
• Operating Humidity: 20% ~ 90% (Non-condensing)
• Dimensions with Stand (WxHxD): 515.0 x 391.8 x 217.4mm (20.28" x 15.43" x 8.56")
• Dimensions without Stand (WxHxD): 515.0 x 316.0 x 59.9mm (20.28" x 12.44" x 2.36")
• Weight: 5.18Kg (11.42 lb)
• Cabinet Color: Black
• Wall Mounts: Optional
• VESA Mounts Interface: 100 x 100mm (3.94" x 3.94")

Hanwha SMT-2233 Monitor Overview
The SMT-2233 LED Monitor features a 16:9 aspect ratio wide screen and supports up to 1920 x 1080 resolution. Designed specifically for use in professional security systems it possesses a dynamic contrast ratio of 1000:1, with a 5ms response time.
