Hanwha / Samsung

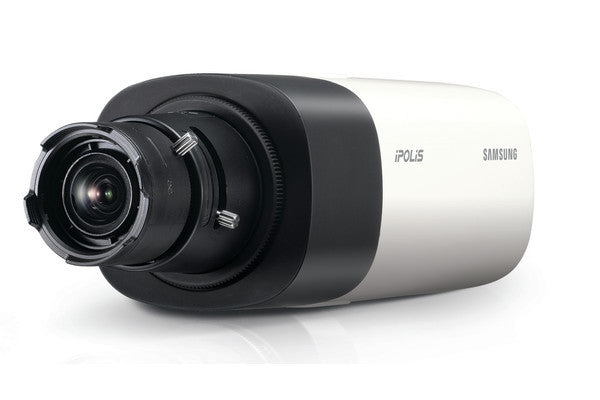

Hanwha SNB-6004 2MP 1080p Full HD Network Camera
Hanwha SNB-6004 Features
- Resolution: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
- Image Sensor: 1/2.8" PS Exmor 2.38M CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color : 0.1Lux (F1.2, 50IRE), 0.0017Lux (30fps 2sec, 50IRE), B/W : 0.01Lux (F1.2, 50IRE)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Manual / DC auto iris, P-iris
- Focal Length: Dependent on Lens Type
- Focus: Simple focus / Manual, Remote control via network ,Button control (Manual, Simple Focus, Day&Night)
- Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
- Frame Rate: H.264 : Max. 60fps at all resolutions, MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
- Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror
- Privacy Mask: Yes, Off / On (32 Zones with 4 points of polygonal)
- Built-in Microphone: No
- Audio Capabilities: Mic (Line)-in selectable via UI, Line-out (Mono, 1Vrms), 3.3V DC (4mA) powered 2K Ohm
- Alarm/Event Management: Motion detection, Audio detection, Face detecton, Video analytics, Alarm input, Network Disconnection, Input 1ea / Output 1ea: File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarmw triggers), External output
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
- Users: 15 users at unicast mode
- On-board Storage: Yes, Micro SD/SDHC/SDXC
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
- Weight: 395g (0.87 lb)
- Operating Temperature: -10°C~+55°C (+14°F~+131°F)
- Operating Humidity: Less than 90% RH
- Power: 24V AC, 12V DC, PoE (IEEE802.3af class3); Max. 12.5W (24V AC), Max. 10.5W (12V DC), Max. 12.0W (PoE, Class3)
- Warranty: 3 Year
- Notes: Lens not included, Hanwha SLA-M3180DN
Hanwha SNB-6004 Overview
The SNB-6004 is a camera from Hanwha Techwin WiseNetIII network ranges which feature the most advanced functions from Hanwha with 2 megapixel 1080p of high definition images. Its high functionalities includes 100dB WDR which delivers 30fps at 2 megapixel 1080p, low light performance down to 0.1 lux (F1.2, 50IRE, color) creating clear images under low light conditions, and P-iris support which result in images with better contrast, clarity, resolution and depth of field. With enhanced features and new technologies which combat the challenges of though environmental conditions, the SNB-6004 will meet the market need which requires professional security.
