Samsung SNB-6010A
Hanwha SNB-6010A 2MP 1.5M Remote Head Network Camera

Hanwha / Samsung

Hanwha SNB-6010A 2MP 1.5M Remote Head Network Camera

Sale price$348.40
Discontinued
SKU: SNB-6010A

Contact

Replaced by the XNB-6001 + SLA-T4680.

Hanwha SNB-6010A Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.8" 2.38M CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.5Lux (1/30sec, F2.5, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Pinhole
  • Focal Length: 4.6mm / F2.5
  • Zoom: No
  • Iris: N/A
  • Focus: Simple focus
  • Field of View: H : 71° / V : 38°
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 30fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
  • WDR Technology: Yes, 120dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement (SSDR Hanwha Super Dynamic Range), Digital Noise Reduction (SSNRIII 2D+3D noise filter), Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
  • Privacy Mask: Yes, 4 zones with 4-sided polygon
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, micro SD/SDHC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Head : Ø24.0 x 42.4mm (Ø0.94" x 1.67"), Body : 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1") (Please see datasheet)
  • Weight: Camera unit (Include 1.5m cable) : 80g (0.18 lb), Main unit : 255g (0.56 lb)
  • Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power/Consumption: PoE (IEEE802.3af), 12V DC / PoE : Max. 7.5W, 12V DC : Max. 6.5W
  • Warranty: 3 Years
  • Please Note: Comes with 1.5M cable length.

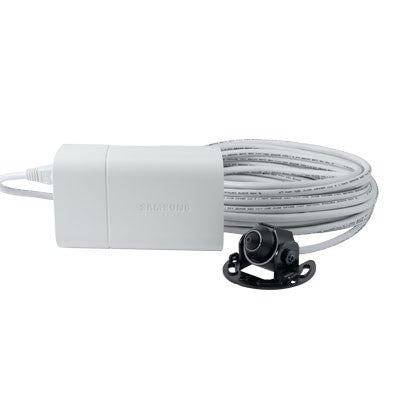

Hanwha SNB-6010A Overview
