Samsung SNB-6010B

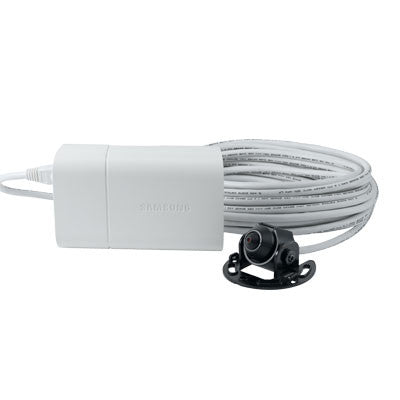

Hanwha SNB-6010B 2MP 1.5M Remote Head Network Camera

Hanwha / Samsung

Hanwha SNB-6010B 2MP 1.5M Remote Head Network Camera

$374.40
Discontinued
SKU: SNB-6010B
Link to Manufacturer's Page

Contact

Replaced by the XNB-6001 + SLA-T4680.

Hanwha SNB-6010B Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.8" 2.38M CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.5Lux (1/30sec, F2.5, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Pinhole
  • Focal Length: 4.6mm / F2.5
  • Zoom: No
  • Iris: N/A
  • Focus: Simple focus
  • Field of View: H : 71° / V : 38°
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 30fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
  • WDR Technology: Yes, 120dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement (SSDR Hanwha Super Dynamic Range), Digital Noise Reduction (SSNRIII 2D+3D noise filter), Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
  • Privacy Mask: Yes, 4 zones with 4-sided polygon
  • Built-in Microphone: No
  • Audio Capabilities: Supports 2-way via selectable Audio In (Mic in / Line in) & Line out (3.5mm stereo mini jack)
  • Alarm/Event Management: Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, micro SD/SDHC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Head : Ø24.0 x 42.4mm (Ø0.94" x 1.67"), Body : 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1") (Please see datasheet)
  • Weight: Camera unit (Include 1.5m cable) : 80g (0.18 lb), Main unit : 255g (0.56 lb)
  • Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power/Consumption: PoE (IEEE802.3af), 12V DC / PoE : Max. 7.5W, 12V DC : Max. 6.5W
  • Warranty: 3 Years
  • Please Note: Comes with 1.5M cable length.
Hanwha SNB-6010B Overview
Hanwha’s leading technology, WiseNetIII, is not only performance driven but a cost effective solution. The unique DSP chipset technology within the WiseNetIII line is developed by Hanwha and has unrivaled features found nowhere else in the security industry. The SNB-6010B is perfect for covert locations as well as installations where space is limited. The camera head is separated from the main unit allowing installation in unique locations such as bank tellers, ATMs, height strip, or data center racks. The microSDXC memory card slot is located in the main unit away from the camera head further preventing theft of the recording medium. A 4.6mm pinhole lens provides a 71° horizontal viewing angle. High end functions include 120dB WDR, 30 fps @ FullHD 1080p, intelligent video analytics, and alarm I/O. The main unit includes a wall mount clip while the camera head bracket allows tilt, rotation, and depth adjustment. Power is provided by 12v DC or PoE.
