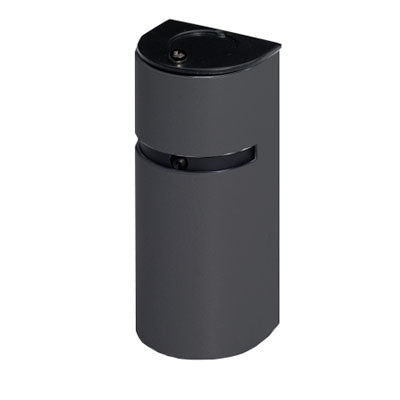

Samsung/Hanwha SNB-J-6010A Door Jamb Mount
Hanwha SNB-J-6010A 2MP 1.5M Remote Head Network Camera with Door Jamb Mount

Hanwha / Samsung

Hanwha SNB-J-6010A 2MP 1.5M Remote Head Network Camera with Door Jamb Mount

$400.40
Discontinued
SKU: SNB-J-6010A
Link to Manufacturer's Page

Contact

Replaced by the XNB-6001 + SLA-T4680.

Hanwha SNB-J-6010A Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.8" 2.38M CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.5Lux (1/30sec, F2.5, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Pinhole
  • Focal Length: 4.6mm / F2.5
  • Zoom: No
  • Iris: N/A
  • Focus: Simple focus
  • Field of View: H : 71° / V : 38°
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 30fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
  • WDR Technology: Yes, 120dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement (SSDR Hanwha Super Dynamic Range), Digital Noise Reduction (SSNRIII 2D+3D noise filter), Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
  • Privacy Mask: Yes, 4 zones with 4-sided polygon
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, micro SD/SDHC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Door Jamb: 43.6 x 35 x 152.4mm (1.7” x 1.4” x 6”) Body : 76.0 x 121.1 x 28.0mm (2.99" x 4.77" x 1.1") (Please see datasheet)
  • Weight: 1.6 lbs
  • Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power/Consumption: PoE (IEEE802.3af), 12V DC / PoE : Max. 7.5W, 12V DC : Max. 6.5W
  • Warranty: 3 Years
  • Please Note: Comes with 1.5M cable length.
Hanwha SNB-J-6010A Overview
Hanwha’s Door Jamb with 2MP Full HD Network Remote Head Camera is designed for easy installation and fits most standard door frames. It is typically mounted on the door frame at a 5 foot height: low enough to see under a hat or hood. The camera can adjusted a full 90 degrees to the left and right of center, making it ideal for double doors requiring an angled view. A 4.6mm pinhole lens provides a 71° horizontal viewing angle. High end functions include 120dB WDR, 30 fps @ FullHD 1080p, intelligent video analytics, and alarm I/O. Power is provided by 12v DC or PoE.
