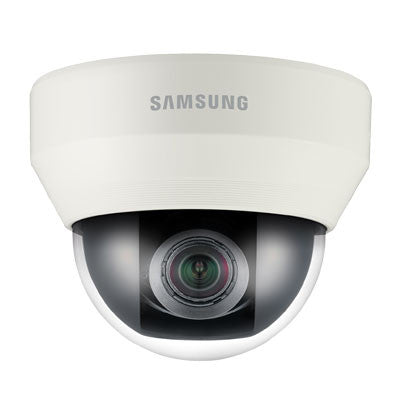

Hanwha SND-6083 2MP 1080P Full HD Network Dome Camera

Replaced by the XND-6080V.

Hanwha SND-6083 Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.8" PS Exmor 2.38M CMOS
• Day/Night: Yes, Auto (ICR) / Color / B/W / External / Schedule
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.1Lux (F1.2, 50IRE), 0.0017Lux (30fps 2sec, 50IRE), B/W : 0.01Lux (F1.2, 50IRE
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal
• Focal Length: 3 ~ 8.5mm (2.8x) / F1.2
• Iris: DC auto iris, board-in type
• Focus: Manual
• Field of View: H : 106.18°(Wide) ~ 37.1°(Tele) / V : 58.42°(Wide) ~ 20.94°(Tele)
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions, MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
• WDR Technology: Yes, 120 dB
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Video Analytics (Tampering, Virtual line, Enter/Exit, Appear / Disappear, Audio detection, Face detection)
• Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
• Built-in Microphone: No
• Audio Capabilities: Bi-directional audio, Selectable (Mic in / Line in), Built-in mic.
• Alarm/Event Management: Motion detection, Audio detection, Face detecton, Video analytics, Alarm input & Network Disconnection, File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
• Users: 15 users at unicast mode
• On-board Storage: Yes, microSD/SDHC/SDXC
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: Ø132.1 x 107.6mm (Ø5.2" x 4.24")
• Weight: 485g (1.07 lb))
• Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Comsumption: 12V DC, PoE (IEEE802.3af) / Max. 9.0W (12V DC), Max. 11.0W (PoE, Class3)
• Warranty: 3 Years

Hanwha SND-6083 Overview

The SND-6083 is a camera from Hanwha Techwin WiseNetIII network ranges, which feature the most advanced functions from Hanwha with 2 megapixel 1080p high definition images. It’s high level of functionalities includes 100dB WDR which delivers 30fps at 2 megapixel 1080p and low light performance down to 0.1 lux (F1.2, 50IRE, color) creating clear images in low light conditions. With enhanced features and new technologies to combat the challenges of tough environmental conditions, the SND-6083 will meet the professional security needs of the market.
