Hanwha SND-6084 Features
- Resolution: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
- Image Sensor: 1/2.8" PS Exmor 2.38M CMOS
- Day/Night: Yes, Auto (ICR) / Color / B/W / External / Schedule
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color : 0.1Lux (F1.2, 50IRE), 0.0017Lux (30fps 2sec, 50IRE), B/W : 0.01Lux (F1.2, 50IRE
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: motorized varifocal
- Focal Length: 3 ~ 8.5mm (2.8x) motorized varifocal
- Iris: DC auto iris
- Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
- Field of View: H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)
- Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
- Frame Rate: H.264 : Max. 60fps at all resolutions, MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
- Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
- Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
- Built-in Microphone: No
- Audio Capabilities: Bi-directional audio, Mic (Line)-in selectable via UI, Line-out
- Alarm/Event Management: Motion detection, Audio detection, Face detecton, Video analytics, Alarm input & Network Disconnection: File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
- Users: 15 users at unicast mode
- On-board Storage: Yes, Micro SD/SDHC/SDXC
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: N/A
- Dimensions: Ø132.1 x 107.6mm (Ø5.2" x 4.24")
- Weight: 505g (1.11 lb))
- Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
- Operating Humidity: Less than 90% RH
- Power: 12V DC, PoE (IEEE802.3af; Max. 9.0W (12V DC), Max. 11.0W (PoE, Class3)
- Warranty: 3 Years

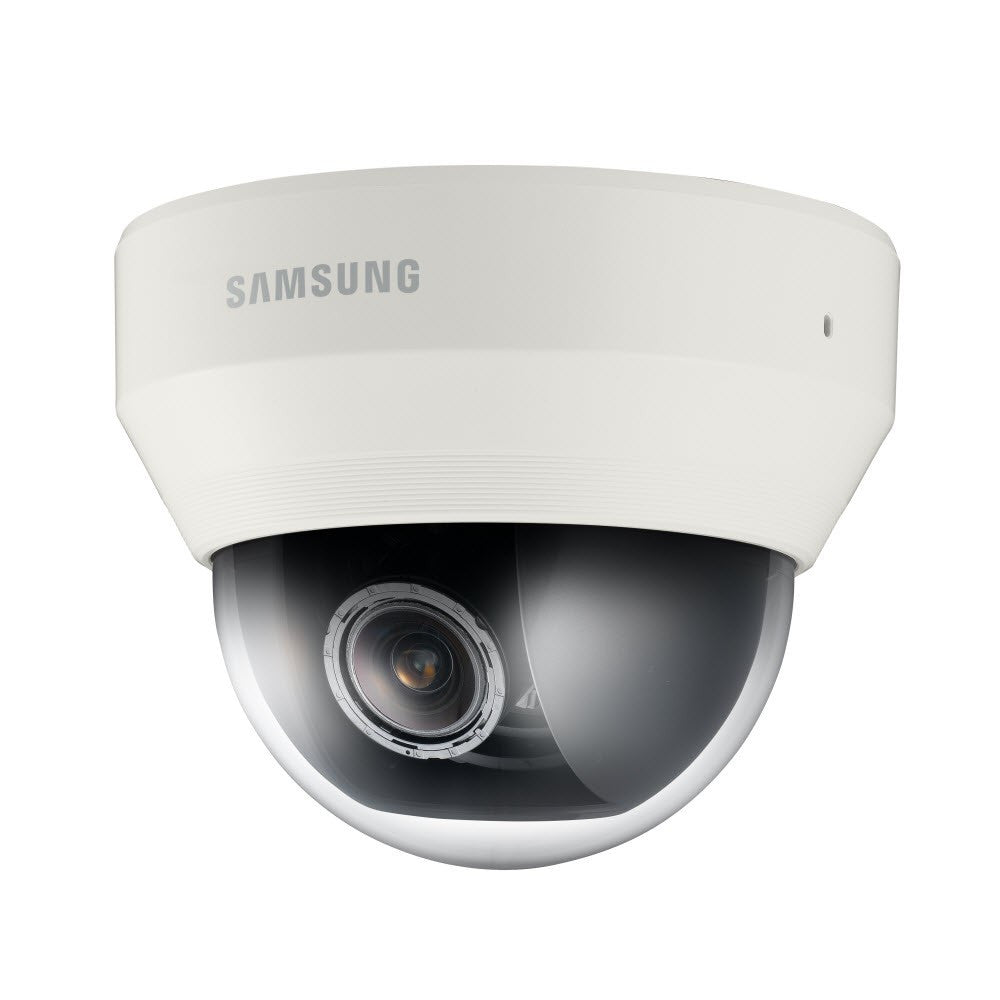

Hanwha SND-6084 Overview
The SND-6084 is a camera from Hanwha Techwin WiseNetIII network ranges, which feature the most advanced functions from Hanwha with 2 megapixel 1080P high definition images. It’s high level of functionalities includes 100dB WDR which delivers 30fps at 2 megapixel 1080P, low light performance down to 0.1 lux (F1.2, 50IRE, color) creating clear images in low light conditions, and built-in motorized varifocal lens which result in easy focus control. With enhanced features and new technologies to combat the challenges of tough environmental conditions, the SND-6084 will meet the professional security needs of the market.
