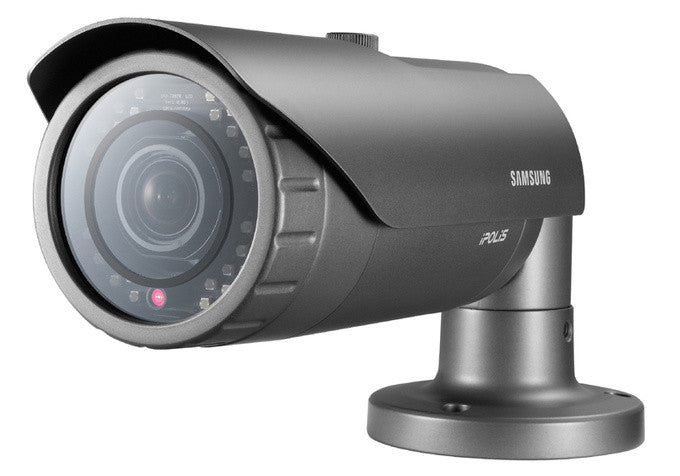

Hanwha SNO-6084R 2 MP Full HD Weatherproof Network IR Camera

Replaced by the XNO-6080R.

Hanwha SNO-6084R Features

• Resolution: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• Image Sensor: 1/2.8" PS Exmor 2.38M CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.1Lux (1/30sec, F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE), B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 30m (98.43ft)
• Lens Type: Vari-Focal
• Focal Length: 3 ~ 8.5mm (2.8x) motorized varifocal
• Zoom: N/A
• Iris: DC auto iris
• Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Field of View: H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions, MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Line out (3.5mm stereo mini jack)
• Alarm/Event Management: Input 1ea / Output 1ea, Motion detection, Audio detection, Face detecton, Video analytics, Alarm input, File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
• Users: 15 users at unicast mode
• On-board Storage: Yes, Micro SD/SDHC/SDXC
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weatherproof, IK10 vandal proof
• Dimensions: 90.4 x 96.0 x 333.2mm (3.56" x 3.78" x 13.12")
• Weight: 1.19Kg (2.62 lb)
• Operating Temperature: 24V AC : -50°C ~ +55°C (-58°F ~ +131°F); 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power: Max. 11W (Heater off), Max. 17W (24V AC - Heater on)
• Warranty: 3 Years

Hanwha SNO-6084R Overview

The SNO-6084R is a camera from Hanwha Techwin WiseNetIII network ranges, which feature the most advanced functions from Hanwha with 2 megapixel 1080p high definition images. Its high level of functionalities includes 100dB WDR which delivers 30fps at 2 megapixel 1080p, built-in IR LEDs creating clear images even in the darkness of 0 lux, and motorized varifocal lens which result in easy focus control. With enhanced features and new technologies to combat the challenges of tough environmental conditions, the SNO-6084R will meet the professional security needs of the market. Rated to IP66 with integrated sunshield and supplied with a mounting bracket that allows the camera to be installed either wall, surface or ceiling mount to ensure the required field of view can be obtained every time.
