Hanwha SNO-L6013R Features
- Max Resolution: 1920 x 1080
- Image Sensor: 1/2.9" CMOS
- Day/Night: Yes
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color : 0.15Lux (1/30sec, F1.8), 0.003Lux (2sec, F1.8), B/W : 0Lux (IR LED on)
- IR Illuminators: Yes
- IR Illuminator Range: 20m (65.62ft)
- Lens Type: Fixed, board mount
- Focal Length: 3.6mm / F1.8
- Iris: N/A
- Focus: Manual
- Field of View: H : 86.5˚ / V : 47.8˚ / D : 101.2˚
- Compression Styles: H.264, MJPEG
- Frame Rate: H.264 : Max. 30fps at all resolutions MJPEG : Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, Max. 15fps at other resolution
- WDR Technology: No
- Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Motion detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
- Privacy Mask: Yes, 6 rectangular zones
- Built-in Microphone: No
- Audio Capabilities: Uni-directional audio only via audio line in
- Alarm/Event Management: Video Analytics (Tampering, Virtual line, Enter/Exit, Appear / Disappear, Audio detection, Face detection), Motion detection with metadata, Tampering Alarm,SD card error, NAS error, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
- Users: 6 users at unicast mode
- On-board Storage: Yes, micro SD/SDHC max. 32G
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66 weatherproof
- Dimensions: Ø58.6 x 165.2mm (Ø2.31" x 6.5") (Without sunshield)
- Weight: 250g (0.55 lb)
- Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
- Operating Humidity: Less than 90% RH
- Power/Comsumption: PoE (IEEE802.3af, Class2) / Max. 5.7W
- Warranty: 3 Years
Hanwha SNO-L6013R Overview

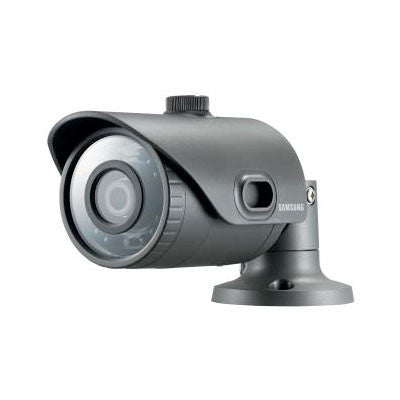

The SNO-L6013R is a 2 megapixel FullHD outdoor bullet camera with a wide angle 3.6mm lens. It is IP66 rated for waterproofing for outdoor installations. The IR LEDs provide visibility up to 20 meters. The SDHC memory card recording slot creates a simple recording solution up to 32Gb.
