Hanwha SNP-6320RH Features
- Max Resolution: 1920 x 1080
- Image Sensor: 1/2.8" 2.38M CMOS
- Day/Night: Yes, Auto (ICR) / Color / B/W
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: Color : 0.3Lux (1/30sec, F1.6, 50IRE), 0.005Lux (2sec, F1.6, 50IRE) 0.1Lux (1/30sec, F1.6, 30IRE), 0.0005Lux (2sec, F1.6, 30IRE); B/W : 0Lux (IR LED on)
- IR Illuminators: Yes
- IR Illuminator Range: 150m (492.13ft)
- Lens Type: DC Auto Iris, board-in type
- Focal Length: 4.4 ~ 140.8mm / F1.6(Wide) / F4.9(Tele)
- Zoom: 32x optical zoom, 16x digital zoom
- Pan Range: 360° endless
- Tilt Range: 190˚ (-5˚ ~185˚)
- Number of Presets: 255 preset positions
- Focus: AF / One-shot AF / Manua
- Field of View: H : 63.68˚(Wide) ~ 2.24˚(Tele) / V : 37.52˚(Wide) ~ 1.28˚(Tele)
- Compression Styles: H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG
- Frame Rate: H.264 : Max. 60fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
- WDR Technology: Yes, 120 dB
- Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Intelligent Video Analytics (Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection)
- Privacy Mask: Yes, 32ea, Rectanglular zones
- Built-in Microphone: No
- Audio Capabilities: Selectable (Mic in / Line in), Line out (3.5mm mono jack)
- Alarm/Event Management: Autotracking, Alarm input, Motion detection, Intelligent video analytics, Network disconnect, File upload via FTP and E-mail, Notification via E-mail, Local storage(SD/SDHC) or NAS recording at Network disconnected, External output, PTZ preset
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP
- Users: 15 users at unicast mode
- On-board Storage: SD/SDHC/SDXC (Up to 128G)
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: IP66 Weatherproof, IK10 Vandal proof
- Dimensions: Ø248.0 x 399.5mm (Ø9.76" x 15.73")
- Weight: 7.1Kg (15.65 lb)
- Operating Temperature: 24V AC : -50°C ~ +55°C (-58°F ~ +131°F) / PoE+ : -30°C ~ +55°C (-22°F ~ +131°F)
- Operating Humidity: less than 90% RH
- Power/Consumption: 24V AC only, 6A / Max. 30W (Heater off), Max. 35W/90W (Heater off/on, IR on)
- Warranty: 3 Years

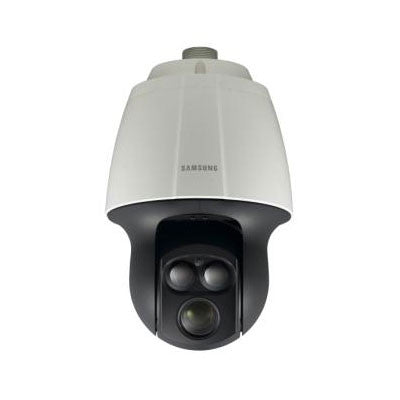

Hanwha SNP-6320RH Overview
The SNP-6320RH features 32x optical zoom lens and IR viewable length up to 492ft enabling users to capture Full-HD high quality images anytime, anywhere. Additionally, Endless 360° pan rotation and 190° tilt control, advanced Auto Tracking functions are suitable to make your monitoring more powerful.
