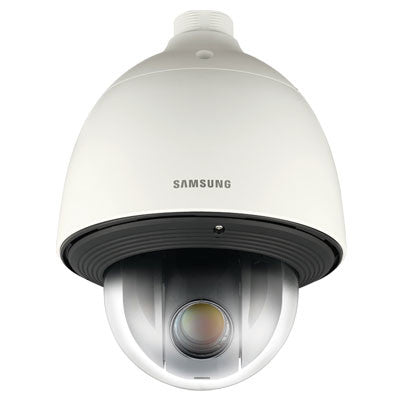

Hanwha SNP-6321H 2MP 32x Zoom Outdoor PTZ Network Camera

Hanwha SNP-6321H Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.8" 2.38M CMOS
• Day/Night: Yes, Auto (ICR) / Color / B/W
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3Lux (1/30sec, F1.6, 50IRE, AGC high), 0.005Lux (2sec, F1.6, 50IRE, AGC high) B/W : 0.03Lux (1/30sec, F1.6, 50IRE, AGC high), 0.0005Lux (2sec, F1.6, 50IRE, AGC high); Color : 0.15Lux (1/30sec, F1.6, 30IRE), 0.0025Lux (2sec, F1.6, 30IRE), B/W : 0.015Lux (1/30sec, F1.6, 30IRE), 0.00025Lux (2sec, F1.6, 30IRE)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: DC Auto Iris, board-in type
• Focal Length: 4.44 ~ 142.6mm / F1.6(Wide) / F4.4(Tele)
• Zoom: 32x optical zoom, 16x digital zoom
• Pan Range: 360° endless
• Tilt Range: 210˚ (-15˚ ~195˚ )
• Number of Presets: 255 preset positions
• Focus: Auto / Manual / One push
• Field of View: H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.8˚(Wide) ~ 1.26˚(Tele)
• Compression Styles: H.264 (MPEG-4 part 10 / AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps; 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
• WDR Technology: Yes, 120 dB
• Image Settings: Camera Title, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Intelligent Video Analytics (Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection)
• Privacy Mask: Yes, Off / On (32 zones of rectangle zone)
• Built-in Microphone: No
• Audio Capabilities: Supports Bi-directional audio via Selectable (Mic in / Line in), & Line out (3.5mm mono jack)
• Alarm/Event Management: Autotracking, Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection; File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm triggers), External output
• ONVIF: YES
• Security: HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1x Authentication
• Users: 10 users at unicast mode
• On-board Storage: SD/SDHC/SDXC slott
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 Weatherproof, IK10 Vandal proof
• Dimensions: Ø220.0 x 293.6mm (Ø8.66" x 11.56")
• Weight: 3.2 kg (7.05 lb)
• Operating Temperature: 24V AC : -50°C ~ +55°C (-58°F ~ +131°F) / PoE+ : -30°C ~ +55°C (-22°F ~ +131°F)
• Operating Humidity: less than 90% RH
• Power/Consumption: 24V AC ±10%, PoE+ (IEEE802.3af, Class4) / 24V AC : Max. 65W (24V AC heater on & PoE heater on), PoE+ : Max. 25W (24V AC heater off / PoE heater on)
• Warranty: 3 Years
