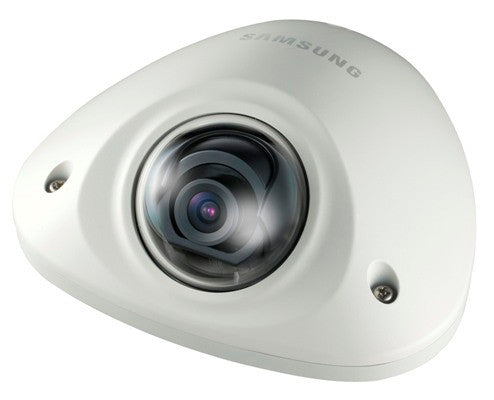

Hanwha SNV-6012M 2MP HD Vandal-Resistant Mobile Network Camera

Replaced by the SNV-6012M.

Hanwha SNV-6012M Features

• Resolution: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
• Image Sensor: 1/2.8" PS Exmor 2.38M CMOS
• Day/Night: Yes, Auto (Electrical) / Color / B/W / Schedule
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3Lux (1/30sec, F1.2, 50IRE), 0.005Lux (2sec, F1.2, 50IRE)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Fixed
• Focal Length: 3mm fixed, F2.0
• Zoom: N/A
• Iris: Fixed iris
• Focus: Auto
• Field of View: H : 103.1° / V : 53.9° / D : 124.5°
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions
• Image Settings: Camera Title, Backlight Compensation,Wide Dynamic Range (WDR), Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Privacy Masking, Defog, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror
• Intelligent Video Analytics: Tampering, Virtual line, Enter/Exit, Appear / Disappear, Face detection
• Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Motion detection, Face detection, Video analytics, Network disconnection, Tampering; File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) recording at Event (Alarm triggers)
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log
• Users: 15 users at unicast mode
• On-board Storage: Yes, Micro SD/SDHC/SDXC
• Indoor/Outdoor: Indoor/Outdoor
• Housing/Enclosure Rating: IP66 Grade (Waterproof), IK10 Class (Vandal Proof), EN50155 & EN50121 (Vibration Resistant)
• Dimensions: 135.2 x 54.3 x 124.5mm (5.32" x 2.14" x 4.9")
• Weight: 530g (1.17 lb)
• Operating Temperature: -30°C ~ +55°C (-22°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power: PoE (Class A type only, Max. 7.5W
• Warranty: 3 Years
• What's Included: SNV-6012M, User Manual, Installer S/W DVD, CMS S/W DVD, Quick Guide, Cable for the testing monitor, L Wrench, 3 M4 Tapping Screws

Hanwha SNV-6012M Overview

The SNV-6012M mobile camera from Hanwha Techwin's WiseNetIII network range features our most advanced technology with 2 megapixel 1080p high definition images. Its high end functions include 120dB WDR, low light performance down to 0.3 lux (F2, 50IRE, color) creating clear images under low light conditions. The SNV-6012M has a M12 connector for secure installation in transportation applications and its vibration resistant build (EN50155, EN50121) ensure reliable video in any transportation environment.
