Hanwha SNV-6013 2MP 1080P Vandal Resistant Micro-Dome Network Camera

Replaced by the XNV-6011.

Hanwha SNV-6013 Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.8" 2.38M CMOS
• Day/Night: Yes, Auto (Electrical) / Color / B/W
• Mechanical IR Cut Filter: No
• Minimum Illumination: Color : 0.3Lux (1/30sec, F1.8, 50IRE), B/W : 0.3 Lux (1/30sec, F1.8, 50IRE)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Board-in type
• Focal Length: 2.8mm / F1.8
• Zoom: None
• Iris: N/A
• Focus: N/A
• Field of View: H : 112° / V : 62°
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps; 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
• WDR Technology: Yes, 120 dB
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Intelligent Video Analytics (Tampering, Virtual line, Enter / Exit, Appear / Disappear, Audio detection, Face detection)
• Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
• Built-in Microphone: No
• Audio Capabilities: None
• Alarm/Event Management: Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Network disconnection; File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Event
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 15 users at unicast mode
• On-board Storage: Yes, Micro SD/SDHC/SDXC
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 Weather Proof & IK10 Vandal proof
• Dimensions: Ø112.8 x 63.7mm (Ø4.44" x 2.51")
• Weight: 550g (1.21 lb)
• Operating Temperature: -20°C ~ +55°C (-4°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Consumption: PoE (IEEE802.3af class3) / Max. 7.5W
• Warranty: 3 Years

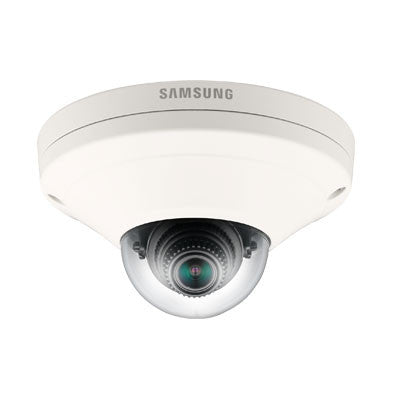

Hanwha SNV-6013 Overview

The SNV-6013 micro-dome camera from Hanwha Techwin's WiseNetIII network range features our most advanced technology with 2 megapixel 1080p high definition images. Its high end functions include 120dB WDR, low light performance down to 0.3 lux (F2, 50IRE, color) creating clear images under low light conditions. The SNV-6013 comes with a standard lens with 112˚ horizontal viewing angle, or an optional wide angle lens with 145° horizontal viewing angle.
