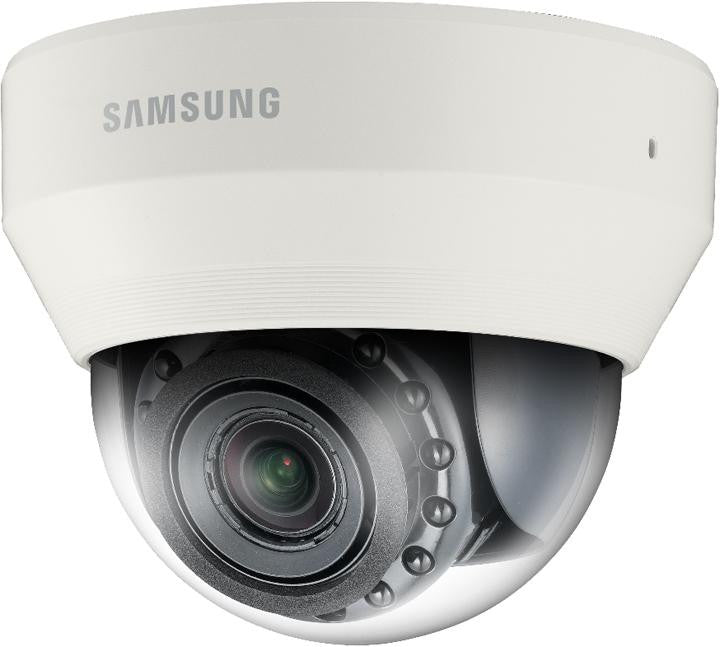

Hanwha SNV-6085R 2 MP HD IR Dome Network Camera

Hanwha SNV-6085R Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.8" PS Exmor 2.38M CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.1Lux (1/30sec, F1.2, 50IRE), 0.0017Lux (2sec, F1.2, 50IRE), B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 20m (65.62ft)
• Lens Type: Board-in type
• Focal Length: 10 ~ 23mm / F1.6
• Zoom: 2.3x motorized varifocal
• Iris: P-iris
• Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Field of View: H : 31.3°(Wide) ~ 13.9°(Tele) / V : 17.1°(Wide) ~ 7.8°(Tele)
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
• Privacy Mask: Yes, Off / On (32zones with 4points of polygonal)
• Built-in Microphone: No
• Audio Capabilities: Selectable (Mic in / Line in), Max output level : 1 Vrms, Line out (3.5mm stereo mini jack)
• Alarm/Event Management: Motion detection, Audio detection, Face detecton, Video analytics, Network disconnection, Alarm input, Input 1ea / Output 1ea: File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: 15 users at unicast mode
• On-board Storage: Yes, micro SD/SDHC/SDXC Max. 64G
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weatherproof, IK10 vandal proof
• Dimensions: Ø160.0 x 118.5mm (Ø6.3" x 4.67")
• Weight: 970g (2.14 lb)
• Operating Temperature: 24V AC : -40°C ~ +55°C (-40°F ~ +131°F), 12V DC, PoE : -10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power: 12V DC ±10%, 24V AC ±10%, PoE (IEEE802.3af) / Max. 11W (Heater off), Max. 12.95W (Heater on)
• Warranty: 3 Years

Hanwha SNV-6085R Overview

The SNV-6085R is a long-range lens vandal-resistant IR dome camera from Hanwha Techwin WiseNetIII network lineup, which feature the most advanced functions from Hanwha with 2 megapixel 1080p high definition images. Its high level of functionalities includes 120dB WDR which delivers 30fps at 2 megapixel 1080p, built-in IR LEDs creating clear images even in the darkness of 0 lux, built-in license-free analytics, and motorized varifocal lens which result in easy focus control. Specially equipped with a long-range 10-23m lens and 20 meter IR LEDs, it is a perfect fit for telephoto applications. With enhanced features and new technologies to combat the challenges of tough environmental conditions, the SNV-6084R will meet the professional security needs of the market. In addition, rated to IP66/IK10 standards, it can work effectively in more demanding environments that are prone to severe or varying weather conditions as well as tampering or physical attack.
