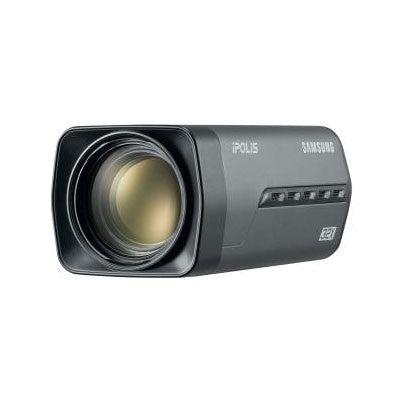

Hanwha SNZ-6320 2MP 32x Network Zoom Box Camera

Replaced by the XNZ-6320

Hanwha SNZ-6320 Features

• Max Resolution: 1920 x 1080
• Image Sensor: 1/2.8" 2.38M CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3Lux (1/30sec, F1.6, 50IRE), B/W : 0.03Lux (1/30sec, F1.6, 50IRE)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Board-in type
• Focal Length: 4.44 ~ 142.6mm / 4.44 ~ 142.6mm
• Zoom: 32x optical, 16x digital zoom
• Iris: DC auto iris
• Focus: Auto / Manual / One push
• Field of View: H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.80˚(Wide) ~ 1.26˚(Tele)
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
• WDR Technology: 120dB
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror
• Privacy Mask: 32 zones with 2 points of rectangle
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio via Mic/Line in & Line out
• Alarm/Event Management: Intelligent Video Analytics (Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection), Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection Alarm Events File upload via FTP and E-mail, Notification via E-mail, Local storage(SD/SDHC/SDXC) or NAS recording at Network disconnected & Event (Alarm Triggers), External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
• Users: Multicast / 10 users at unicast mode
• On-board Storage: SD/SDHC/SDXC memory slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: 72.0 x 59.9 x 135.4mm (2.83" x 2.36" x 5.33"?
• Weight: 540g (1.19 lb)
• Operating Temperature: 10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: less than 90% RH
• Power: 12V DC, PoE (IEEE802.3af class 3) / Max. 9.0W (12V DC), Max. 10.0W (PoE)
• Warranty: 3 Years

Hanwha SNZ-6320 Overview

The SNZ-6320 camera features an industry leading 32x optical zoom and allowing for clear and crisp images, with 1080p @ 60fps, wide dynamic range at 120db and WiseNet III analytics.
