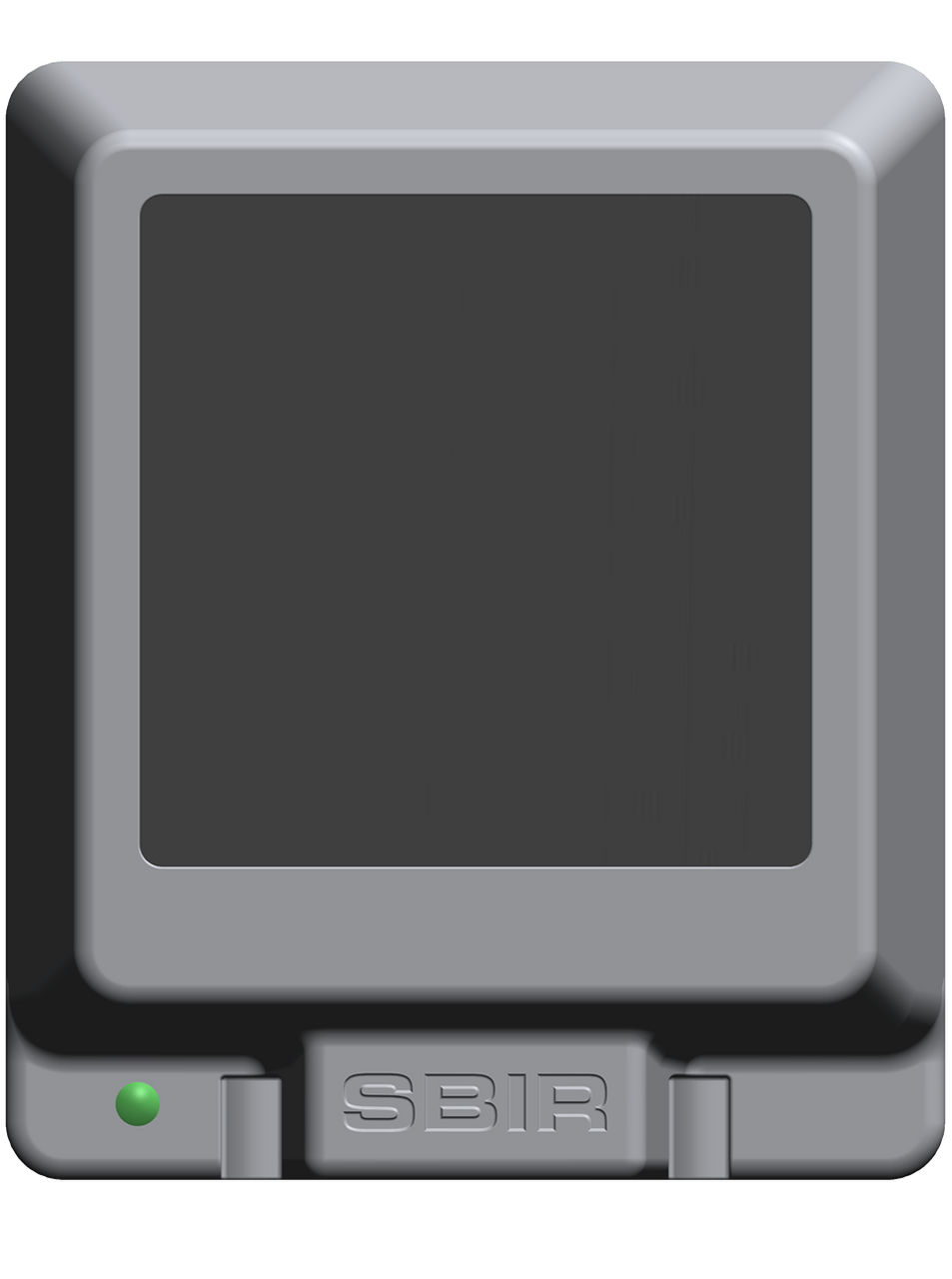

Hanwha SPI-35B Black Body Calibration Device

Body Temperature Reference (black body) accessory recommended for TNM-3620TDY. The SPI-35B provide a stable, uniform, low cost and simple to operate thermal source for human body temperature detection. Primarily designed to be incorporated into COVID-19 related thermal imaging body temperature screening systems, works by providing a viewable thermal reference area for infrared (thermal) camera systems to detect elevated temperatures in those being screened. Features “set and forget” configuration. An operator simply configures the reference source through the USB interface and stores the set point into non-volatile memory. After configuration, the blackbody automatically controls to the set point upon each power up. A status LED visually indicates when the reference is stable and ready for use as a calibration source. Performance has been optimized for a range of absolute temperature set points and ambient conditions that are required by most body temperature screening systems. IEC 80601-2-59 compliant.

Key Features:

• Body Temperature Reference (black body), 3” EC 80601-2-59 standard 30°C to 45°C (86°F to 113°F) Accuracy of ±0.15°C (±0.3°F) 1/4-20″ Tripod Mounting, 5% to 95%, non-condensing (RH), 18V, 1A, DC max
