Replaced by the HRD-1641.
Hanwha SRD-1685 Features
- Camera Compatibility: Analog HD & 960H Analog Cameras
- Maximum Number of Cameras/Channels: 16CH BNC, 1080p / 720p AHD camera, NTSC/PAL
- Recording Rate: Up to 192fps@1920 x 1080 / Up to 192fps@1920 x 1080, Up to 480fps@1280 x 720 / Up to 400fps@1280 x 720
- Compression Styles: H.264
- Event Notification: Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level - Low, Medium, High)
- Recording Mode: NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30fps) / PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
- Pre-Alarm Recording: Up to 30sec (5, 10, 20, 30sec)
- Quick Search: Date/Time, Event, Backup, POS (SD signal only), Motion (*All search include preview function)
- Remote Access: SmartViewer, Webviewer, SSM (CMS) iOS & Android
- Ethernet: 1 RJ-45 10/100/1000 Base-T
- Hard Drive Bays: 4 bays
- Max TB per HD Bay: 6TB (2TB included in base model)
- Dimensions: 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15")
- Weight: Approx. 5.1Kg (11.24 lb)
- Operating Temperature: +0°C ~ +40°C (+32°F ~ +104°F)
- Operating Humidity: 20% ~ 85% RH
- Power: 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging / Max. 30W (1 x 1T HDD

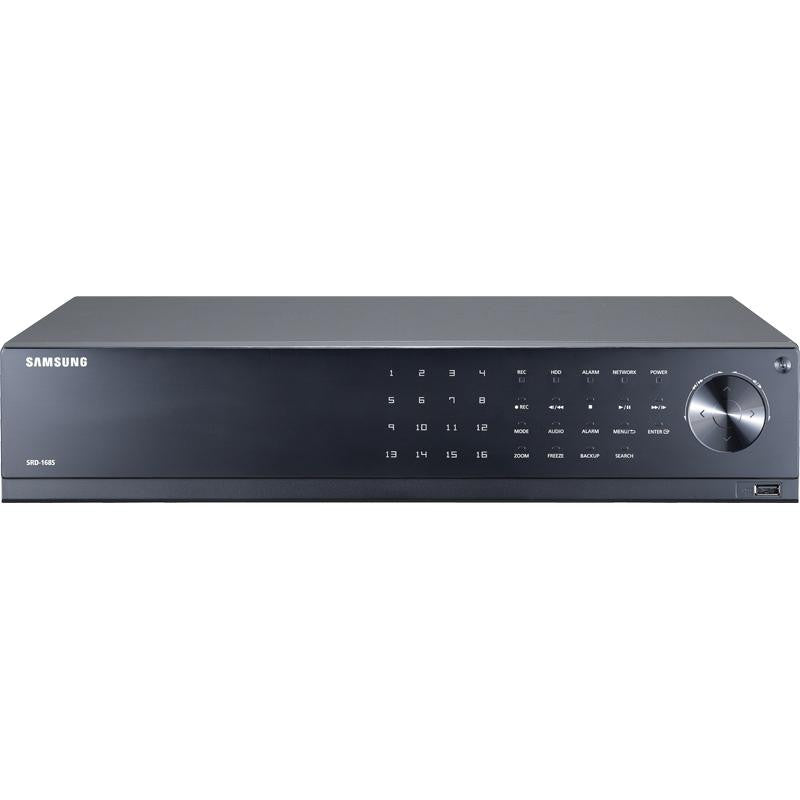

Hanwha SRD-1685 Overview
Hanwha's 16CH 1080p HD DVR + 16CH Audio, provides exceptional image quality and multitude of user friendly functions, 4 HDD bays, The HD+ Series is Hanwha's complete analog 1080p HD analog solution.
