Hanwha / Samsung

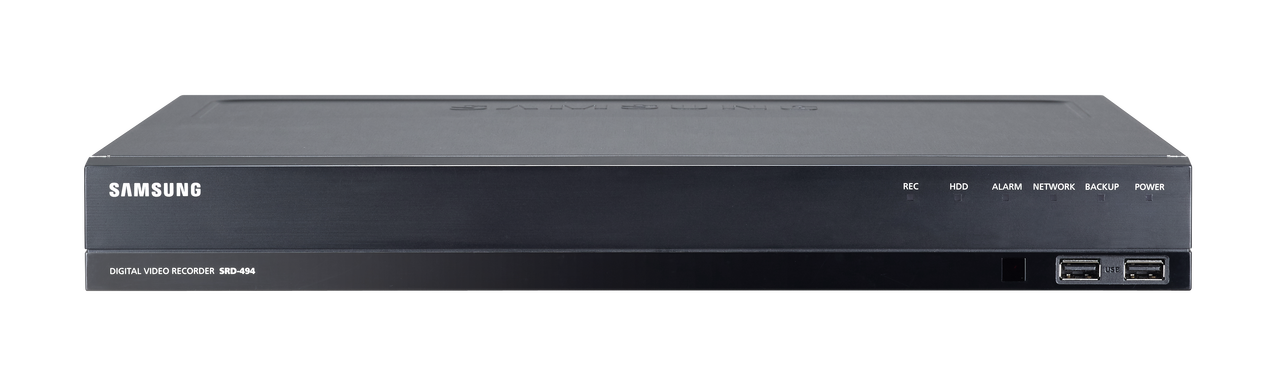

Hanwha SRD-494 4CH 1080p Analog HD Real-time DVR
Replaced by the HRD-442.
Hanwha SRD-494 Features
- Camera Compatibility: Analog HD & 960H Analog Camera
- Maximum Number of Cameras/Channels: 4CH BNC, 1080p / 720p AHD camera, NTSC/PAL
- Recording Rate: Up to 120fps@1920 x 1080 / Up to 100fps@1920 x 1080, Up to 120fps@1280 x 720 / Up to 100fps@1280 x 720
- Compression Styles: H.264
- Event Notification: Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level - Low, Medium, High)
- Recording Mode: NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30fps), PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
- Pre-Alarm Recording: Up to 30sec (5, 10, 20, 30sec)
- Quick Search: Date/Time, Event, Backup, POS (SD signal only), Motion (*All search include preview function)
- Remote Access: SmartViewer, Webviewer, Mobile viewer, SSM (CMS) iOS & Android
- Ethernet: 1 RJ-45 10/100/1000 Base-T
- Hard Drive Bays: 2 SATA HDDs
- Max TB per HD Bay: 6TB (1TB included in base model)
- Dimensions: 370.0 x 44.0 x 320.0mm (14.57" x 1.73" x 12.6")
- Weight: Approx. 2.68Kg (5.91lb)
- Operating Temperature: +0°C ~ +40°C (+32°F ~ +104°F)
- Operating Humidity: 20% ~ 85% RH
- Power: 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt / Max. 13.3W (1 x 1T HDD)
Hanwha SRD-494 Overview
Hanwha's SRD-494 4CH 1080p HD DVR, provides exceptional image quality and multitude of user friendly functions, 2 HDD bays, 4CH Audio, The HD+ Series is Hanwha's complete analog 1080p HD analog solution.
